(27.100.AK) - REAR AXLE, MOUNTING PARTS

Запчасти Case 580SN (27.100.AK) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM

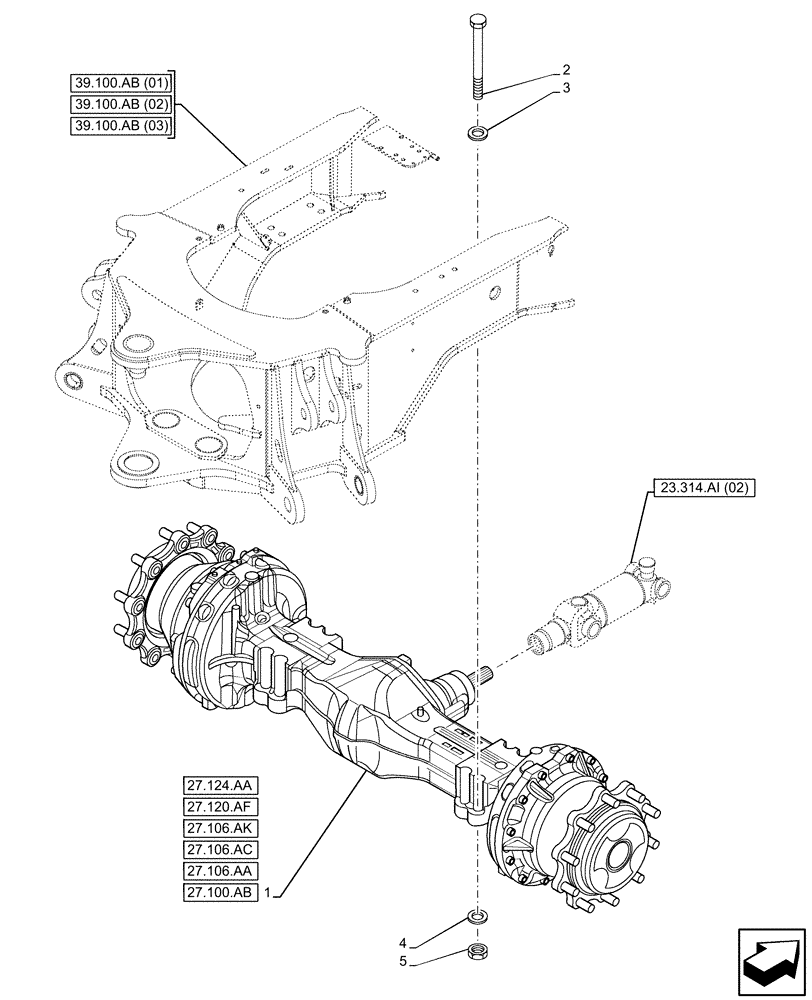

Схема запчастей Case 580SN - (27.100.AK) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM
27.106.ac
3
4
5
2
1
39.100.ab (03)
27.106.ak
27.120.af
39.100.ab (01)
39.100.ab (02)
27.106.aa
27.124.aa
23.314.ai (02)
27.100.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84178115

REAR AXLE

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

3

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

Выбрано товаров: 5
