(25.400.AQ[01]) - FRONT AXLE, STEERING KNUCKLE, 2WD

Запчасти Case 580SN (25.400.AQ[01]) - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM

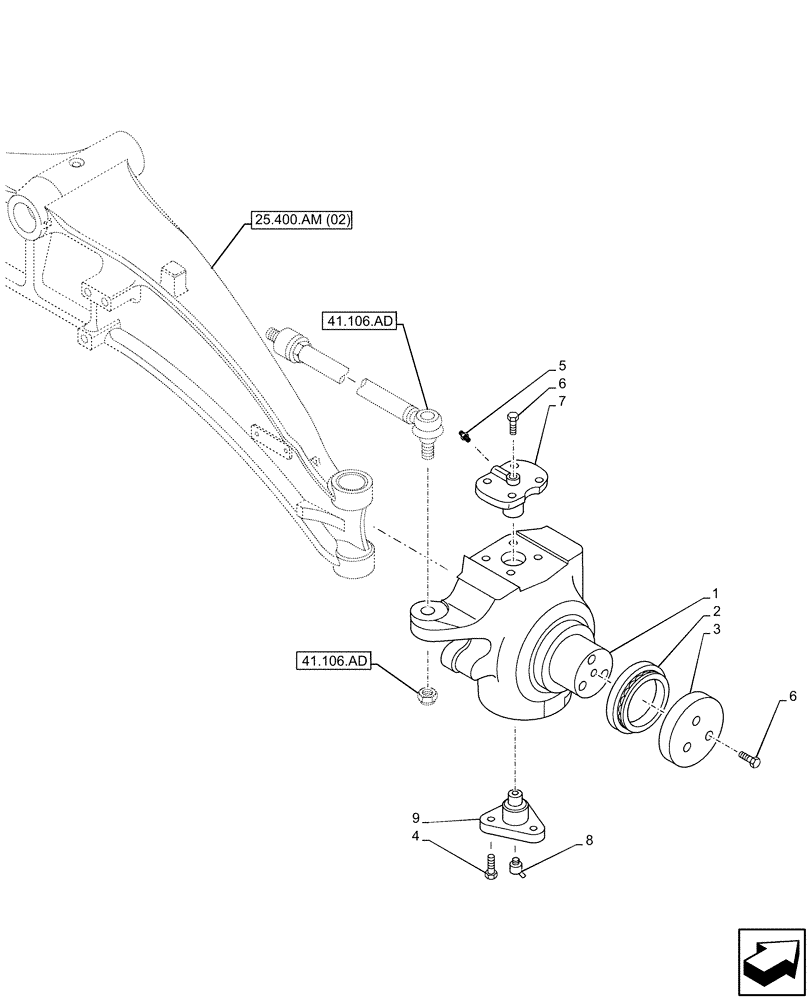

Схема запчастей Case 580SN - (25.400.AQ[01]) - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM
25.400.am (02)
3
7
6
6
4
1
9
8
2
5
41.106.ad
41.106.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

429232A1

STEERING KNUCKLE,LH

1шт.

2

401059A1

THRUST BEARING

1шт.

3

401060A1

THRUST WASHER

1шт.

4

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

3шт.

5

712998R91

LUBE NIPPLE,M6 x 1, 16mm lg

1шт.

6

100533A1

BOLT,Self-Lock, M12 x 30mm

7шт.

7

122265A1

PIN,35mm / 45mm OD x 45.5mm L

1шт.

8

N13505

LUBE NIPPLE,45 Degree, M6 x 1

1шт.

9

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

1шт.
