(25.400.AH) - FRONT AXLE, WHEEL HUB, 2WD

Запчасти Case 580SN (25.400.AH) - FRONT AXLE, WHEEL HUB, 2WD (25) - FRONT AXLE SYSTEM

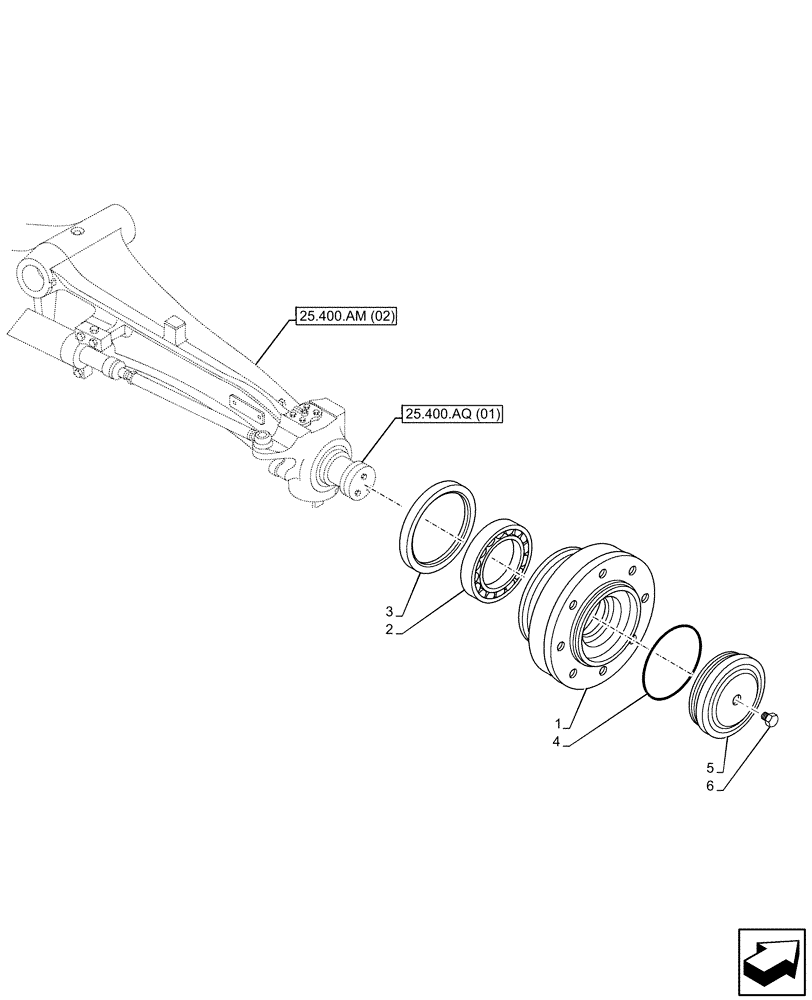

Схема запчастей Case 580SN - (25.400.AH) - FRONT AXLE, WHEEL HUB, 2WD (25) - FRONT AXLE SYSTEM
25.400.aq (01)
3
2
5
1
6
4
25.400.am (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

401065A1

HUB

Wheel

2шт.

2

324213A1

ROLLER BEARING

2шт.

3

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Hub Oil SRVC

2шт.

4

401066A1

O-RING

2шт.

5

401067A1

COVER

2шт.

6

D142898

PLUG,M10 x 1

M10 x 1mm

2шт.
