Запчасти Case 580SN (25.400.AF) - FRONT AXLE SUPPORT, 2WD (25) - FRONT AXLE SYSTEM

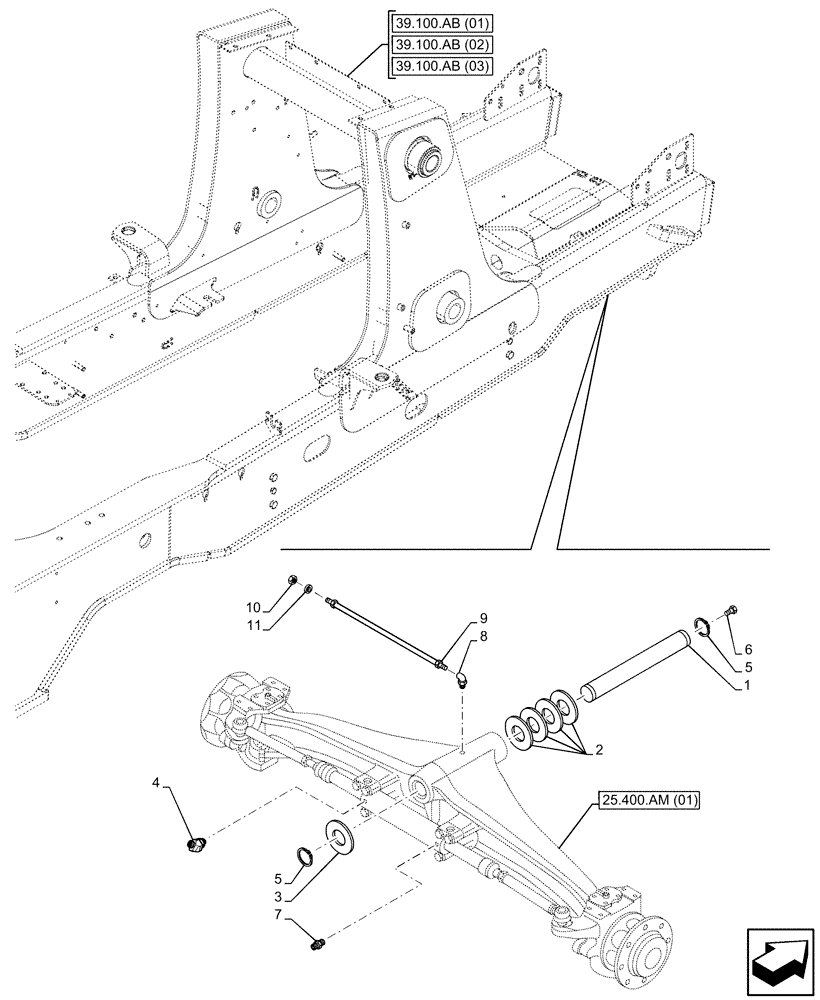

Схема запчастей Case 580SN - (25.400.AF) - FRONT AXLE SUPPORT, 2WD (25) - FRONT AXLE SYSTEM
25.400.am (01)
9
6
1
7
10
4
11
5
8
5
2
3
39.100.ab (03)
39.100.ab (01)
39.100.ab (02)

Артикул

Название

Примечание

Количество

1

391451A1

PIVOT PIN,50mm OD x 431.5mm L

1шт.

2

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

3

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

4

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

5

800-44050

SNAP RING,M50, Ext

2шт.

6

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

7

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1шт.

9

87572760

HOSE ASSY.,6.4mm ID x 533mm L

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

Выбрано товаров: 11
