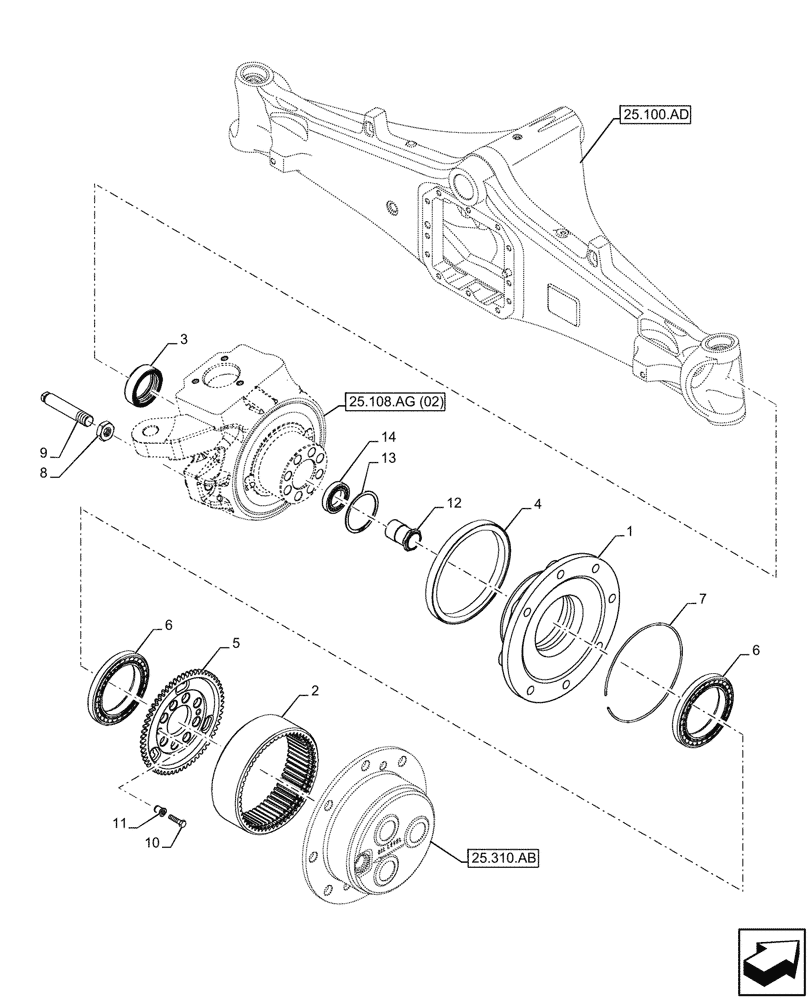

Запчасти Case 580SN (25.108.AE[02]) - FRONT AXLE, STEERING KNUCKLE, 4WD (25) - FRONT AXLE SYSTEM

1

47570583

HUB

Drive

1шт.

2

87748929

RING GEAR,60T

60T

1шт.

3

84264324

SEAL,53.2mm ID x 78mm OD x 14mm Thk

Oil Cartridge

1шт.

4

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

5

84259703

GEAR,60T

Support

1шт.

6

84545376

TAPERED BEARING,109.54mm ID x 158.7mm OD x 23.020mm L

109.54 x 158.7

2шт.

7

5165162

SNAP RING,M50, Int

1шт.

8

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

M18

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

10

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

8шт.

11

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

T-Dowel 10.55 x 16.069 x 23

8шт.

12

84316956

NUT,M45 x 1.5, 88.5mm L

Stake M45 x 1.5 - 6H

2шт.

13

84270868

CIRCLIP,75 PHC

Internal HVY

1шт.

14

84262394

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.
