(25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD

Запчасти Case 580SN (25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD (25) - FRONT AXLE SYSTEM

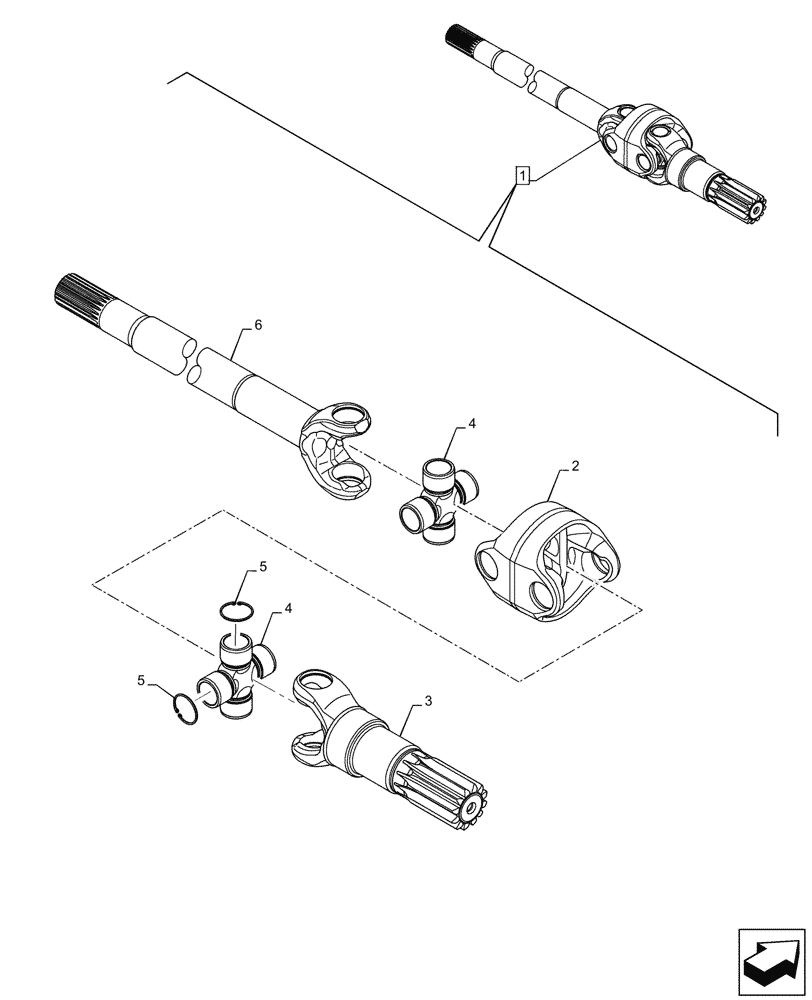

Схема запчастей Case 580SN - (25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD (25) - FRONT AXLE SYSTEM
4
5
1
3
4
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84316950

AXLE-SHAFT, ARTICULA,944mm L

ASSY, Incl 2 - 6

2шт.

2

84258432

UNIVERSAL JOINT

Front Axle

1шт.

3

84316951

SHORT SHAFT,185mm L, 12T

Front Axle

1шт.

4

84258434

U-JOINT SPIDER

Journal and Beari

2шт.

5

274234

SNAP RING,M27, Int

Circlip

8шт.

6

84258430

HALF SHAFT,695mm L, 22T

Front Axle

1шт.
