(23.314.AI[02]) - REAR AXLE, HALF SHAFT, 4WD

Запчасти Case 580SN (23.314.AI[02]) - REAR AXLE, HALF SHAFT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

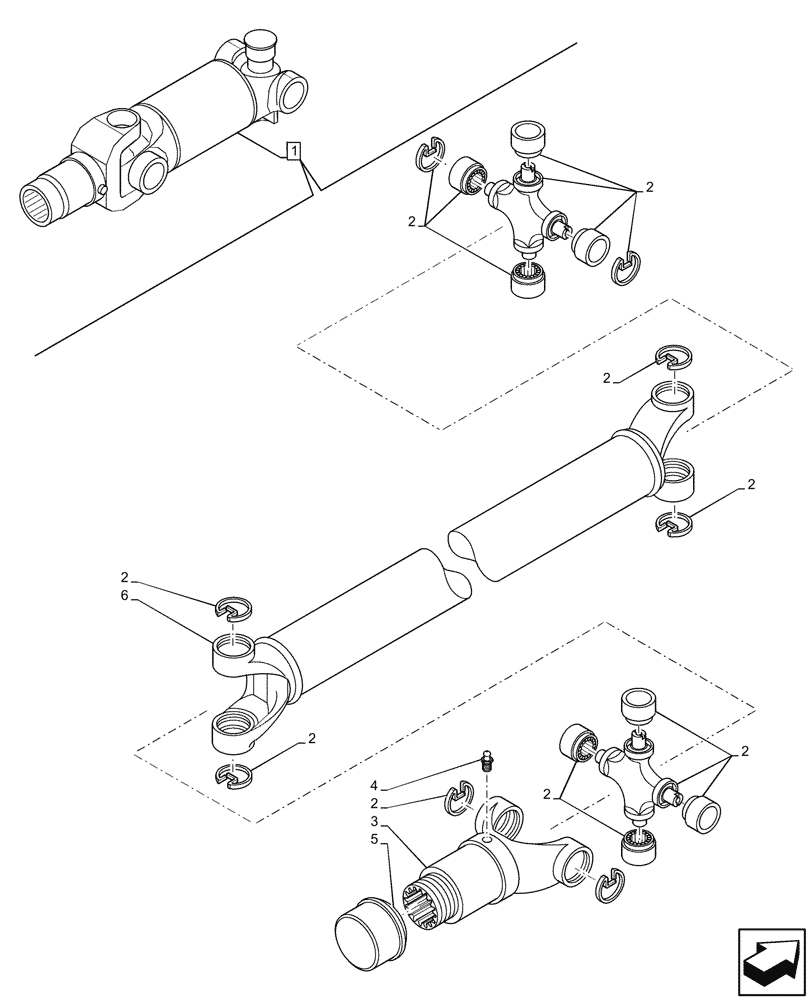

Схема запчастей Case 580SN - (23.314.AI[02]) - REAR AXLE, HALF SHAFT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM
2
2
2
2
2
5
2
2
2
3
6
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87613924

DRIVE SHAFT

ASSY, Incl 2 - 6

1шт.

2

393231A1

SPIDER

2шт.

3

87716823

YOKE

Splined

1шт.

4

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

87716824

CAP

Reataining

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Incl 1

1шт.
