Запчасти Case 580SN (21.155.AN[06]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, SECONDARY SHAFT (21) - TRANSMISSION

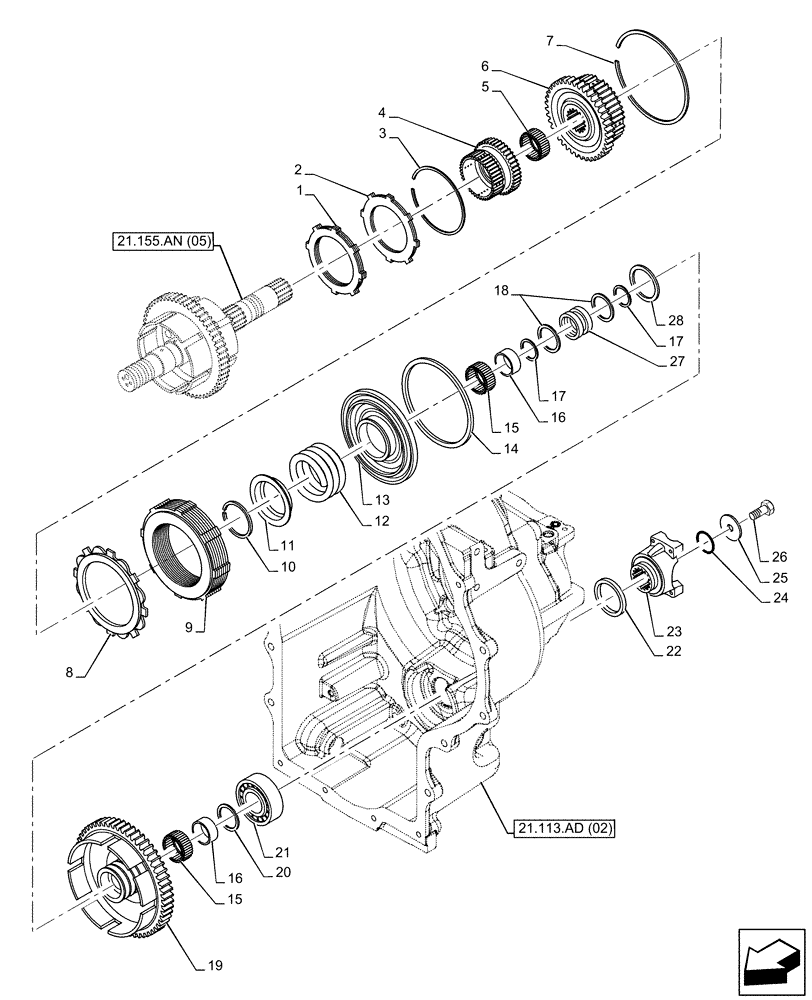

Схема запчастей Case 580SN - (21.155.AN[06]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, SECONDARY SHAFT (21) - TRANSMISSION
21.155.an (05)
18
13
3
16
8
9
6
21
15
7
1
14
15
26
16
17
25
2
4
10
17
11
22
12
19
5
27
28
23
24
20
21.113.ad (02)

Артикул

Название

Примечание

Количество

1

87705479

CLUTCH OVERHAUL KIT

Powershift Transmission, 4th Speed

1шт.

2

310519A1

PLATE

Backing

1шт.

3

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

4

87705480

GEAR,30T

Powershift Transmission, Z=30

1шт.

5

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

Roller

1шт.

6

87705481

GEAR,51T

Powershift Transmission, Z=51

1шт.

7

87705482

CIRCLIP,204.5mm OD x 3mm Thk

Secondary Shaft

1шт.

8

87705483

CIRCLIP

1шт.

9

87705492

CLUTCH OVERHAUL KIT

Powershift Transmission, 1st Speed

1шт.

10

87705493

CIRCLIP,72.4mm ID x 2mm Thk

1шт.

11

87705494

COVER

Lock Spring

1шт.

12

87705501

SPRING

Secondary Shaft

1шт.

13

87705502

PISTON

Clutch

1шт.

14

87705503

SEALING RING

1шт.

15

87705515

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

Bushing

2шт.

16

87705516

BUSHING,45mm ID x 50mm OD x 20.5mm L

2шт.

17

87705517

O-RING

2шт.

18

87705518

SEALING RING

D55

2шт.

19

87705521

GEAR,60T

Powershift Transmission, Z=60

1шт.

20

87705522

WASHER

1шт.

21

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

22

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

23

87705524

FLANGE

Powershift Transmission, Secondary Shaft

1шт.

24

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

25

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

26

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

27

87705519

SPACER

Secondary Shaft

1шт.

28

87705520

SEAL KIT

1шт.

Выбрано товаров: 28
