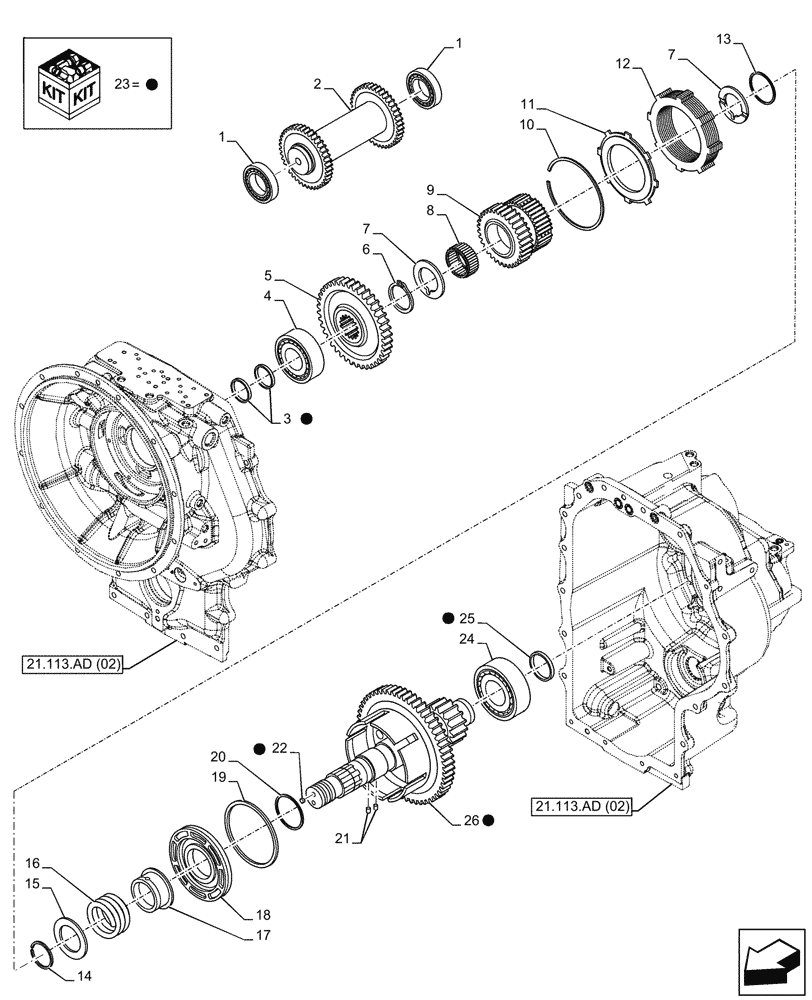

Запчасти Case 580SN (21.155.AN[04]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, PRIMARY SHAFT (21) - TRANSMISSION

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

358636A1

SHAFT,27T

Idler Drawing Later

1шт.

3

87705461

SEALING RING

D40

2шт.

4

87705462

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

5

87705463

GEAR,45T

Powershift Transmission, Z=45

1шт.

6

800-1150

SNAP RING,M50, Ext

1шт.

7

358640A1

WASHER

2шт.

8

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

Roller

1шт.

9

87705464

GEAR,28T

Powershift Transmission, Z=28

1шт.

10

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

11

310519A1

PLATE

Clutch Backing

2шт.

12

87705465

CLUTCH OVERHAUL KIT

Powershift Transmission, 2nd and 3rd Speed

1шт.

13

87705466

THRUST WASHER

Powershift Transmission

1шт.

14

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RW55

1шт.

15

181161A1

PLATE, THRUST

Pressure

1шт.

16

358637A1

SPRING

Piston Return

1шт.

17

358641A1

TRANSMISSION SLEEVE

Lube

1шт.

18

358644A1

PISTON

Clutch

1шт.

19

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

20

358642A1

SEALING RING

1шт.

21

181108A1

SPLIT PIN,3mm OD x 8mm L

D3x8

2шт.

22

87701779

RIVET,7mm OD

1шт.

23

87705468

SHAFT,58/17T

Powershift Transmission, Incl 3, 22, 25, 26

1шт.

24

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

25

358645A1

SEALING RING

1шт.

26

NSS

NOT SOLD SEPARAT

Shaft, Z=58, Incl in 23

1шт.
