Запчасти Case 580SN (21.155.AN[03]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, COMPONENTS (21) - TRANSMISSION

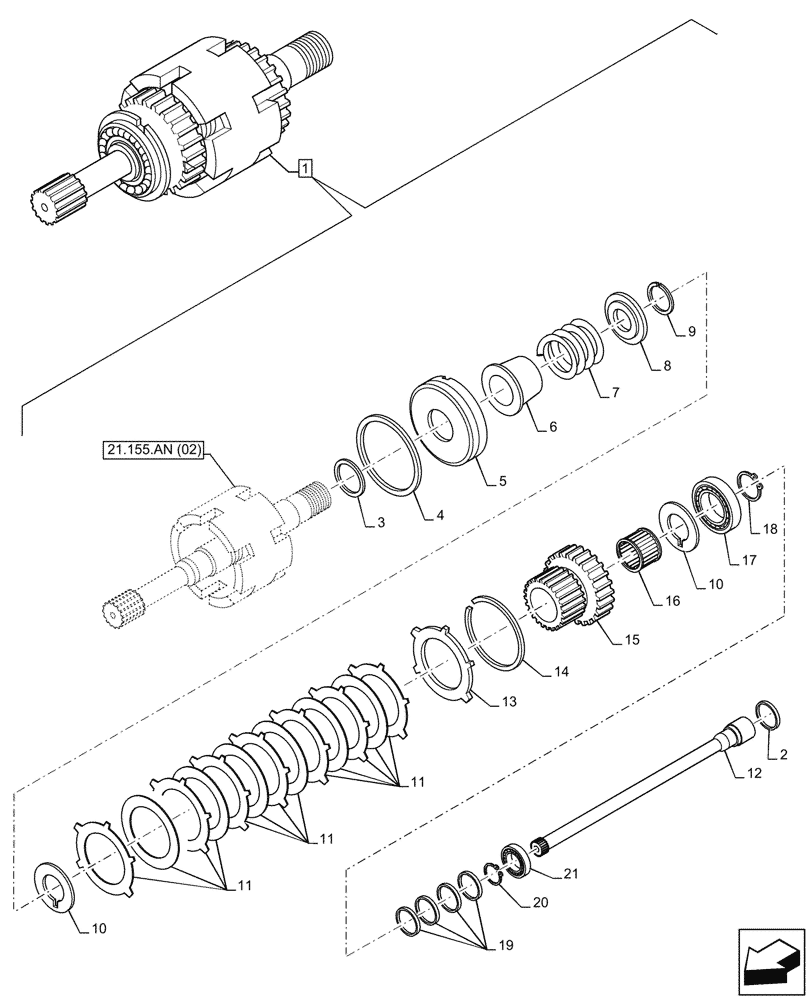

Схема запчастей Case 580SN - (21.155.AN[03]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, COMPONENTS (21) - TRANSMISSION
21.155.an (02)
1
5
11
18
3
19
8
4
11
13
9
20
10
14
7
17
15
11
10
16
6
2
12
21

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Powershift Transmission, Input Shaft, Incl 2 - 21, Serviced by Lower Levels

1шт.

See Input Shaft Components also in Figures 21.155.AN 02

1шт.

2

358645A1

SEALING RING

1шт.

3

358642A1

SEALING RING

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

5

358644A1

PISTON

Clutch

1шт.

6

358641A1

TRANSMISSION SLEEVE

1шт.

7

358637A1

SPRING

Piston Return

1шт.

8

181161A1

PLATE, THRUST

Pressure

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

10

358640A1

WASHER

2шт.

11

87705458

CLUTCH OVERHAUL KIT

Powershift Transmission, Forward/Reverse

1шт.

12

87705460

PTO SHAFT

Powershift Transmission

1шт.

13

310519A1

PLATE

Backing

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

15

87705459

GEAR,37T

Z=37

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

1шт.

19

87429984

RING

4шт.

20

800-1130

SNAP RING,M30, Ext

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

Выбрано товаров: 22
