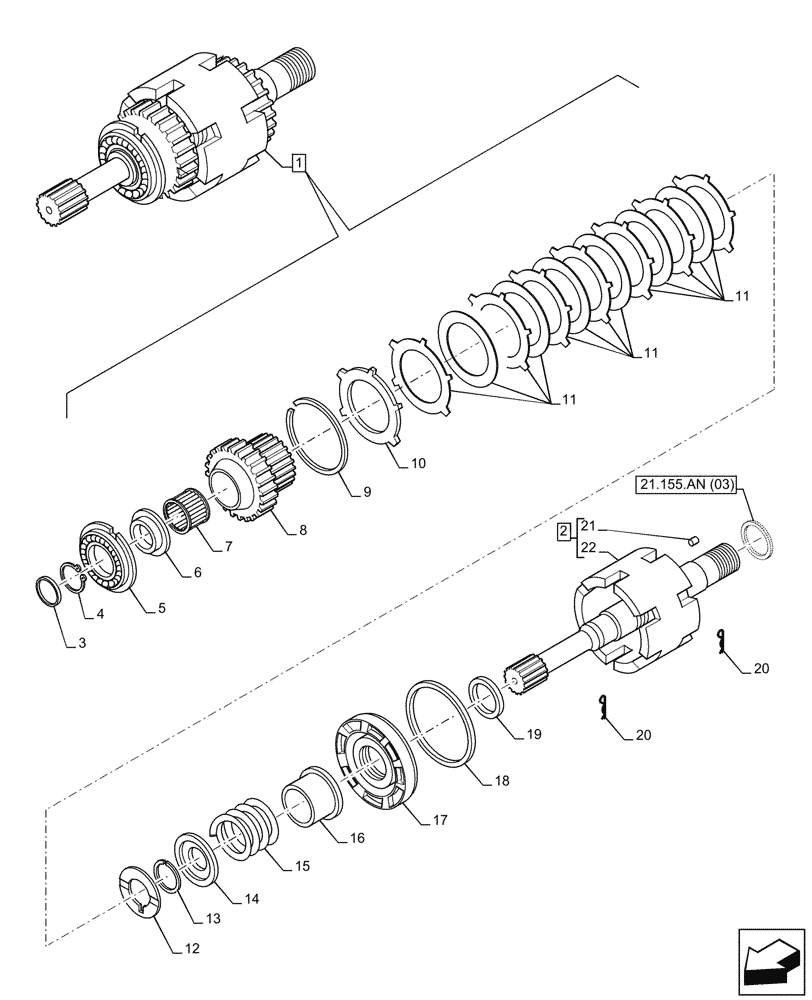

Запчасти Case 580SN (21.155.AN[02]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, COMPONENTS (21) - TRANSMISSION

1

NS

NOT SERVICED

Powershift Transmission, Input Shaft, ASSY, Incl 2 - 22, Serviced by Lower Levels

1шт.

See Input Shaft Components also in Figures 21.155.AN 03

1шт.

2

87525849

REPAIR KIT

Powershift Transmission, Input Shaft, Incl 21, 22

1шт.

3

358645A1

SEALING RING

1шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

5

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

6

358635A1

SPACER

Input Shaft

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

87705457

GEAR,45T

Powershift Transmission, Reverse, Z=45

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

10

310519A1

PLATE

Backing

1шт.

11

87705458

CLUTCH OVERHAUL KIT

Powershift Transmission, Forward/Reverse

1шт.

12

358640A1

WASHER

1шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

14

181161A1

PLATE, THRUST

Pressure

1шт.

15

358637A1

SPRING

Piston Return

1шт.

16

358641A1

TRANSMISSION SLEEVE

1шт.

17

358644A1

PISTON

Clutch

1шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

19

358642A1

SEALING RING

1шт.

20

181108A1

SPLIT PIN,3mm OD x 8mm L

D3x8

2шт.

21

139312A1

PLUG,Expansion, 6mm OD

Expansion, 6mm

4шт.

22

NSS

NOT SOLD SEPARAT

Input Shaft, Incl in 2

1шт.
