(21.154.AJ[04]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, PRIMARY SHAFT, 2WD

Запчасти Case 580SN (21.154.AJ[04]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, PRIMARY SHAFT, 2WD (21) - TRANSMISSION

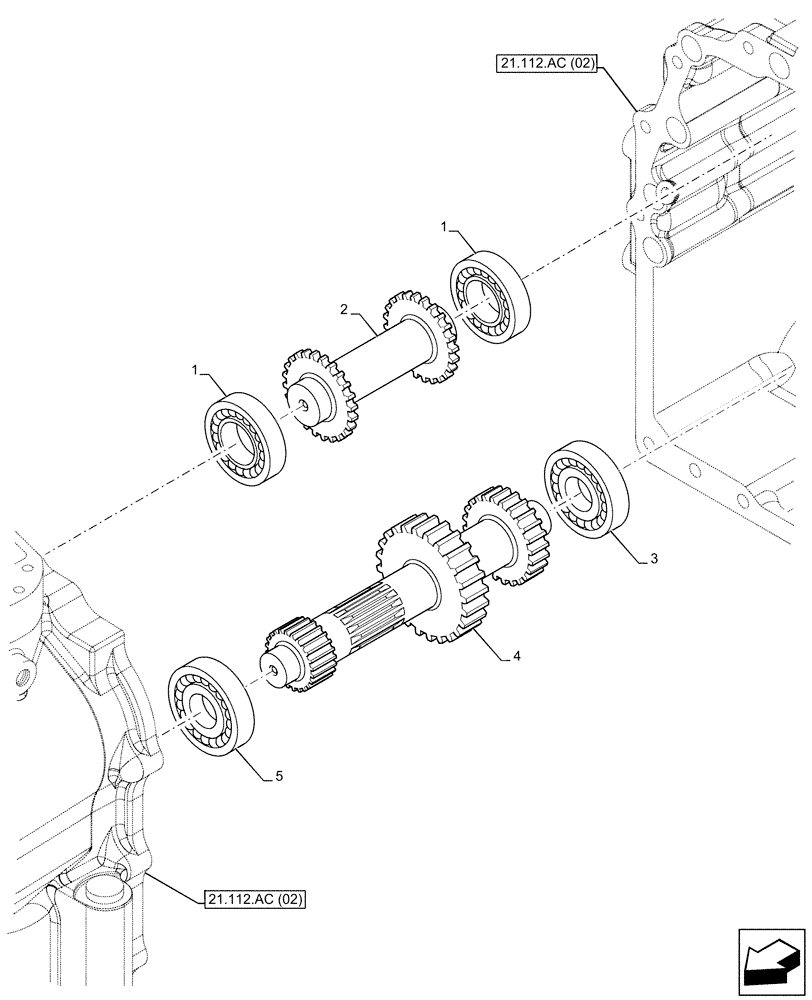

Схема запчастей Case 580SN - (21.154.AJ[04]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, PRIMARY SHAFT, 2WD (21) - TRANSMISSION
21.112.ac (02)
2
1
3
5
1
4
21.112.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

358636A1

SHAFT,27T

Reverse, Z=27

1шт.

3

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

4

87701276

PRIMARY SHAFT

Powershuttle Transmission

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

Cylindrical

1шт.
