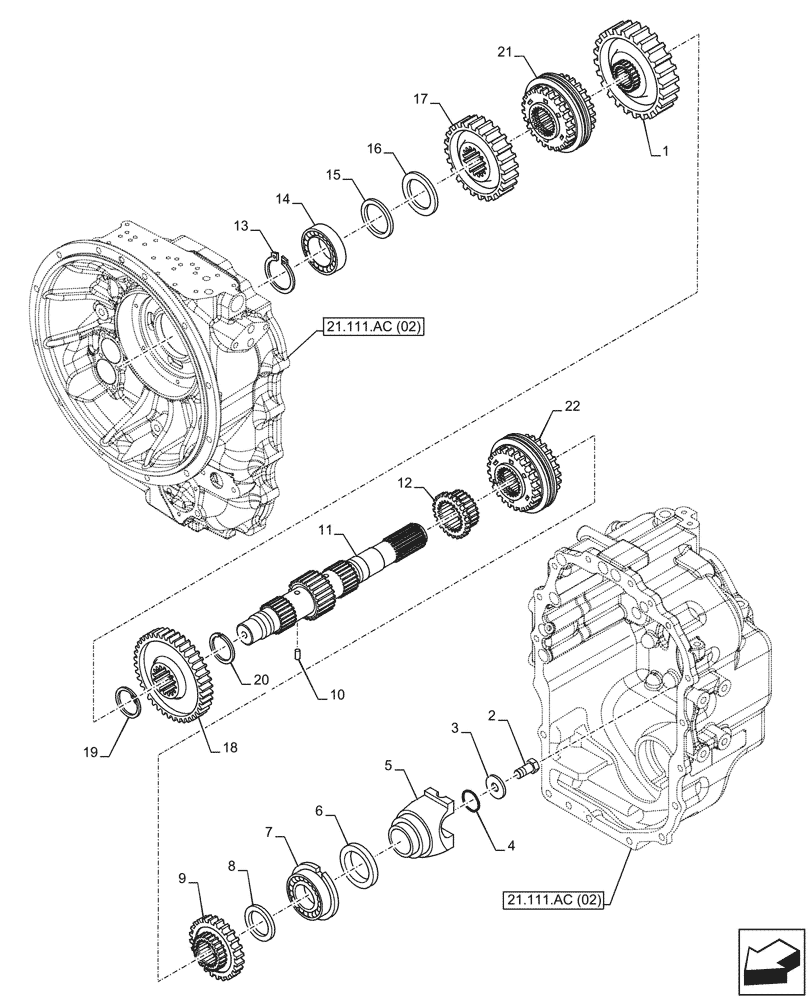

Запчасти Case 580SN (21.152.AK[05]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DRIVE SHAFT, DRIVEN SHAFT (21) - TRANSMISSION

1

87701293

GEAR,50T

Transmission

1шт.

2

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

3

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

4

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

5

233284A1

YOKE

Rear Drive Shaft

1шт.

6

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

7

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

8

358639A1

WASHER

Spacer

1шт.

9

358283A1

DRIVEN GEAR,33T

3rd

1шт.

10

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

11

87701775

SHAFT

Transmission, Secondary (Rear Output Shaft)

1шт.

12

358282A1

GEAR,23T

4th Speed

1шт.

13

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

14

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

Cylindrical

1шт.

15

358650A1

SHIM,0.05mm Thk

1шт.

15

358651A1

SHIM,0.1mm Thk

1шт.

15

358652A1

SHIM,0.3mm Thk

1шт.

15

196454A1

SHIM,0.5mm Thk

1шт.

16

358649A1

THRUST WASHER

Spacer

1шт.

17

87701278

GEAR,44T

Transmission

1шт.

18

358656A1

GEAR,44T

1шт.

19

358655A1

RING, SNAP,67.4mm ID, Ext

1шт.

20

358654A1

RING, SNAP,65.5mm ID, Ext

1шт.

21

84336876

SYNCHRONIZER

Transmission, 1st and 2nd Speed

1шт.

22

366398A1

SYNCHRONIZER

1шт.
