Запчасти Case 580SN (21.152.AK[03]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, INPUT SHAFT, COMPONENTS (21) - TRANSMISSION

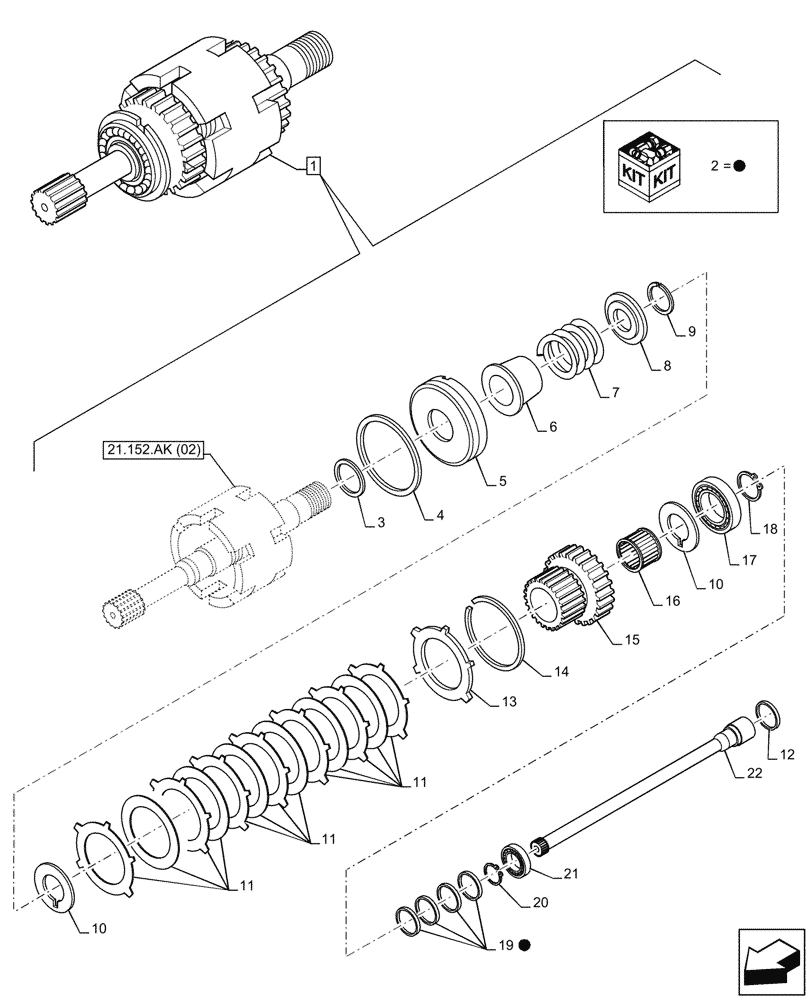

Схема запчастей Case 580SN - (21.152.AK[03]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, INPUT SHAFT, COMPONENTS (21) - TRANSMISSION
21.152.ak (02)
11
13
14
5
7
11
2
8
20
19
10
18
16
9
1
4
12
22
11
6
17
2
15
10
3
21

Артикул

Название

Примечание

Количество

1

84209035

SHAFT

Semi-Powershift Transmission, Input, ASSY, Incl 2 - 22

1шт.

See Semi-Powershift Transmission Input Shaft Components also in Figure 21.152.AK 02

1шт.

2

87525849

REPAIR KIT

Semi-Powershift Transmission, Input Shaft, ASSY, Incl 19

1шт.

See Repair Kit Components also in Figure 21.152.AK 02

1шт.

3

358642A1

SEALING RING

Piston, D55

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

Piston

1шт.

5

358644A1

PISTON

Clutch

1шт.

6

358641A1

TRANSMISSION SLEEVE

Clutch

1шт.

7

358637A1

SPRING

Piston Return

1шт.

8

181161A1

PLATE, THRUST

Lock Spring

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

D50

1шт.

10

358640A1

WASHER

2шт.

11

87705458

CLUTCH OVERHAUL KIT

1шт.

12

358645A1

SEALING RING

D45

1шт.

13

310519A1

PLATE

Clutch, Lock Ring

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

Snap

1шт.

15

358638A1

PINION,39T

Gear, Forward, Z=29

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

Roller

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

Circlip, D50

1шт.

19

87429984

RING

D50

4шт.

20

800-1130

SNAP RING,M30, Ext

Circlip, D30

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

22

87705460

PTO SHAFT

1шт.

Выбрано товаров: 24
