Запчасти Case 580SN (21.134.AM[02]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

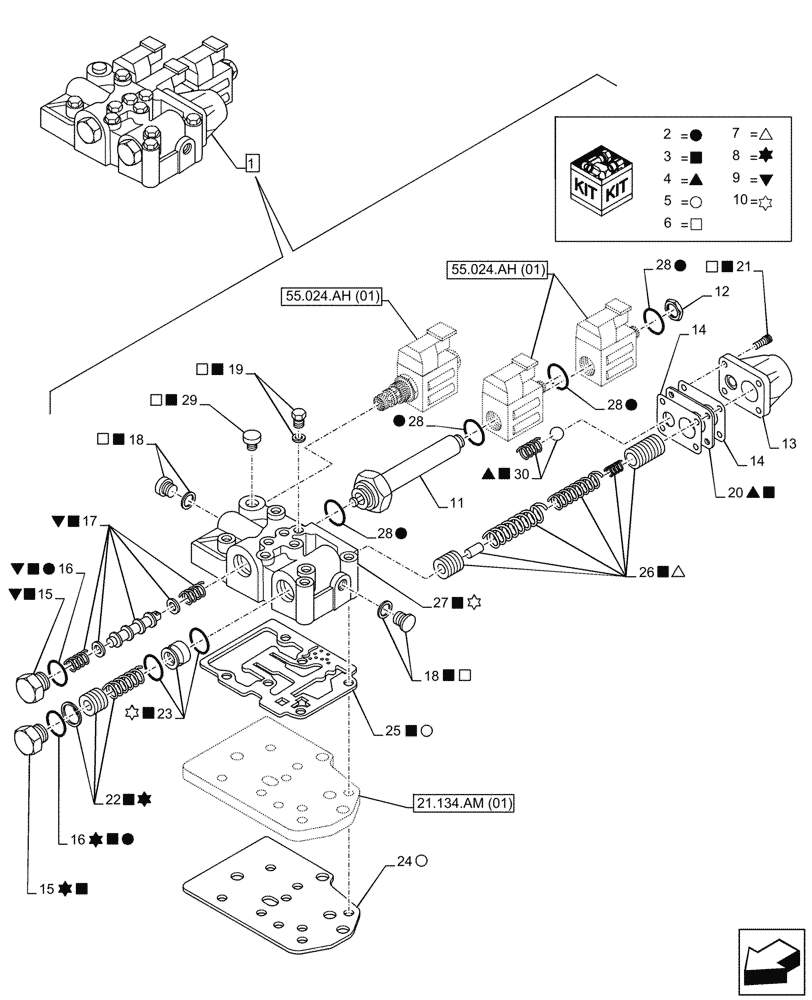

Схема запчастей Case 580SN - (21.134.AM[02]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, CONTROL VALVE, COMPONENTS (21) - TRANSMISSION
55.024.ah (01)
1
26
8
2
9
2
3
3
27
4
2
16
14
3
8
28
7
8
20
19
7
4
3
30
15
5
2
6
6
5
3
3
11
10
3
25
2
3
3
14
16
6
6
13
18
3
2
6
15
28
28
6
23
3
4
5
12
17
22
21
2
10
29
9
3
10
28
3
3
3
24
3
18
8
9
3
9
3
21.134.am (01)
55.024.ah (01)

Артикул

Название

Примечание

Количество

1

87524409

CONTROL VALVE

Powershuttle Transmission, ASSY, Incl 2 - 30

1шт.

See Control Valve Components also in Figure 55.024.AH 01

1шт.

2

87524436

REPAIR KIT

Seal O-Ring, Incl 16, 28

1шт.

3

87524441

KIT

Body Valve, Incl 15 - 23, 25 - 27, 29, 30

1шт.

4

87524439

REPAIR KIT

Plate, Incl 20, 30

1шт.

5

87524437

REPAIR KIT

Transmission Gaskets, Incl 24, 25

1шт.

6

87524435

REPAIR KIT

Transmission Control Valve, Incl 18, 19, 21, 29

1шт.

7

87524438

REPAIR KIT

Modulation Valve, Incl 26

1шт.

8

87524433

REPAIR KIT

Flow Divider Piston for Control Valve, Incl 15, 16, 22

1шт.

9

87524432

REPAIR KIT

Forward/Reverse Spool Kit for Control Valve, Incl 15 - 17

1шт.

10

87524440

REPAIR KIT

Control Valve Body, Incl 23, 27

1шт.

11

190442A1

PLUNGER

Solenoid

1шт.

12

87530365

PLUG

1шт.

13

181251A1

COVER

Control Valve

1шт.

14

181256A1

GASKET

2шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 3 or in 8 or in 9

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 3 or in 8 or in 9

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 3 or in 9

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 3 or in 6

2шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 3 or in 6

1шт.

20

NSS

NOT SOLD SEPARAT

Plate, Incl in 3 or in 4

1шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 3 or in 4

4шт.

22

NSS

NOT SOLD SEPARAT

Spring, Incl in 3 or in 8

1шт.

23

NSS

NOT SOLD SEPARAT

Piston, Incl in 3 or in 10

1шт.

24

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

1шт.

25

NSS

NOT SOLD SEPARAT

Gasket, Incl in 3 or in 5

1шт.

26

NSS

NOT SOLD SEPARAT

Spring, Incl in 3 or in 7

1шт.

27

NSS

NOT SOLD SEPARAT

Housing, Incl in 3 or in 10

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

4шт.

29

NSS

NOT SOLD SEPARAT

Plug, Incl in 3 or in 6

1шт.

30

NSS

NOT SOLD SEPARAT

Ball, Incl in 3 or in 4

1шт.

Выбрано товаров: 31
