Запчасти Case 580SN (21.133.AK) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, CONTROL VALVE (21) - TRANSMISSION

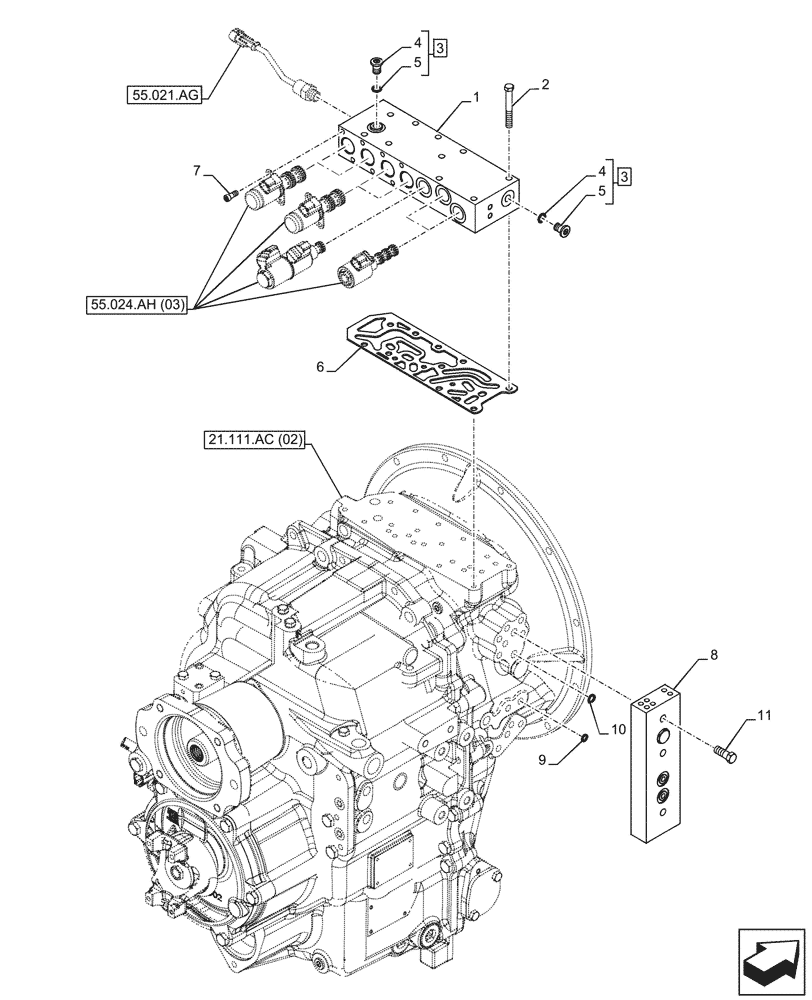

Схема запчастей Case 580SN - (21.133.AK) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, CONTROL VALVE (21) - TRANSMISSION
55.024.ah (03)
10
4
7
3
5
5
11
6
2
3
1
4
9
8
55.021.ag
21.111.ac (02)

Артикул

Название

Примечание

Количество

1

84367062

CONTROL VALVE

Semi-Powershift Transmission, Body

1шт.

2

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

10шт.

3

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 4, 5

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Plug , Incl in 3

2шт.

6

84367061

GASKET

Semi-Powershift Transmission, Control Valve

1шт.

7

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

8шт.

8

84367066

MANIFOLD

Semi-Powershift Transmission, Oil Circuit Plate

1шт.

9

100760A1

O-RING

12шт.

10

84367067

O-RING,26.65mm ID x 2.62mm Thk

1шт.

11

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

5шт.

Выбрано товаров: 11
