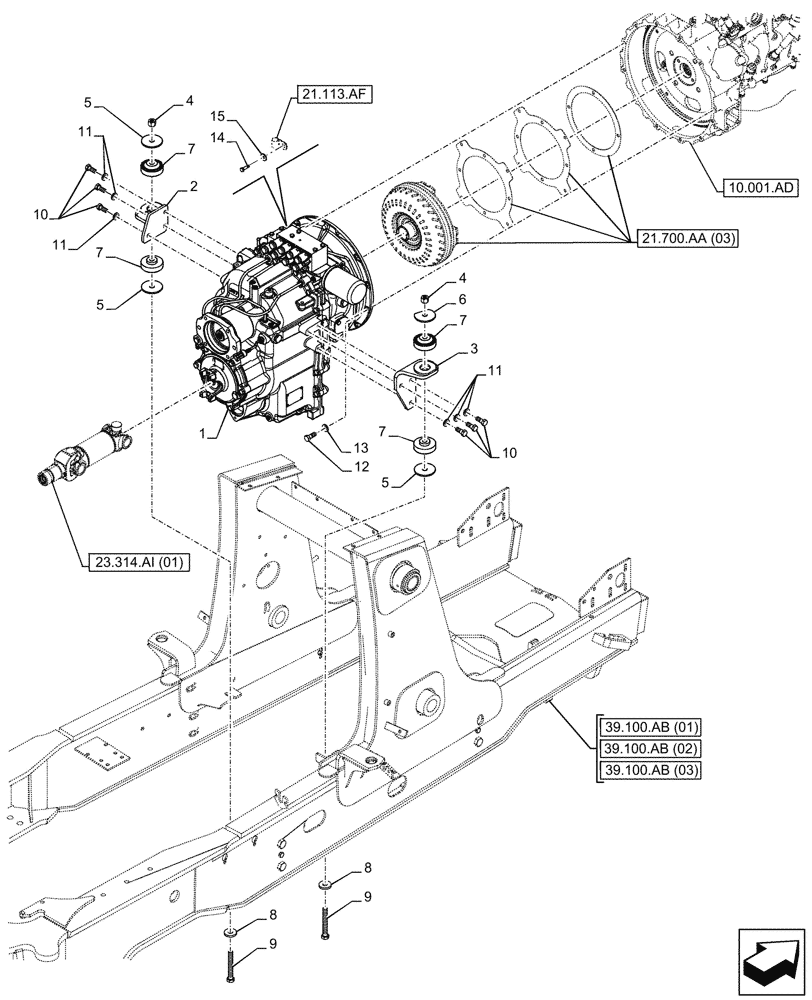

Запчасти Case 580SN (21.113.AD[01]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, SUPPORT, 4WD (21) - TRANSMISSION

1

87567534

TRANSMISSION

Powershift, 4WD

1шт.

2

84567664

SUPPORT

Powershift Transmission, LH

1шт.

3

84567666

SUPPORT

Powershift Transmission, RH

1шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

3шт.

6

47395114

WASHER,16.7mm ID x 76.2mm OD x 4.55m Thk, HTS

Flat Edge

1шт.

7

84383342

MOUNT

Powershift Transmission

4шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

9

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

11шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

11шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

15

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

1шт.
