Запчасти Case 580SN (21.111.AC[02]) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, HOUSING, 4WD (21) - TRANSMISSION

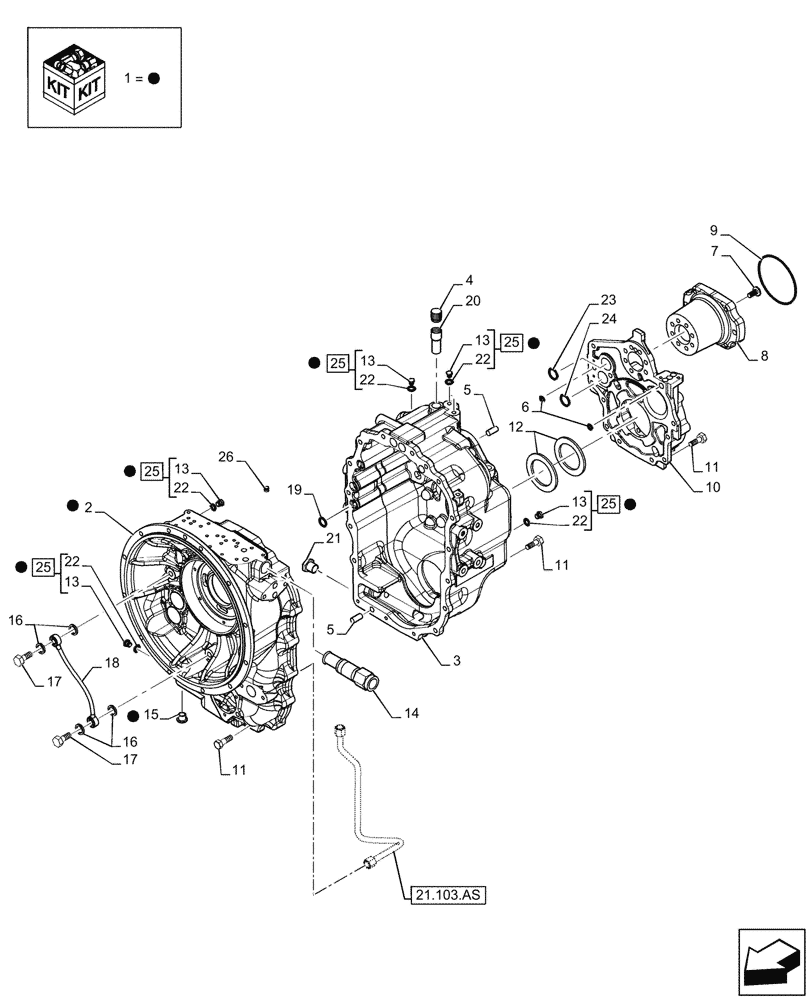

Схема запчастей Case 580SN - (21.111.AC[02]) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, HOUSING, 4WD (21) - TRANSMISSION
21.103.as
17
13
22
13
6
1
16
10
24
1
11
13
14
17
18
21
7
26
15
22
25
12
22
25
25
16
22
13
25
1
1
1
11
1
8
19
4
9
5
23
11
13
20
5
3
2
25
1
22
1

Артикул

Название

Примечание

Количество

1

84336853

HOUSING

Semi-Powershift Transmission, Front, Kit, Incl 2, 15, 25 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Semi-Powershift Transmission, 4WD, Front Housing, Incl in 1

1шт.

3

84336854

HOUSING

Semi-Powershift Transmission, 4WD, Rear

1шт.

4

1530028C1

BREATHER

Oil Vapor

1шт.

5

K260177

PIN

Dowel

3шт.

6

5194294

RUBBER RING

3шт.

7

87701258

BOLT,M10 x 1.5 x 45mm L

10шт.

8

87701269

FLANGE

Semi-Powershift Transmission, PTO

1шт.

9

87429982

O-RING

1шт.

10

84336855

COVER

Semi-Powershift Transmission, Rear

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

20шт.

12

84336858

SHIM,0.1mm Thk

0.1mm Thk

1шт.

12

84336860

SHIM,0.3mm Thk

0.3mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

7шт.

14

84336881

VALVE, PRESSURE CONT

Semi-Powershift Transmission

1шт.

15

239606A1

PLUG

1шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

Copper

4шт.

17

181179A1

BANJO BOLT

2шт.

18

181232A1

TUBE

Semi-Powershift Transmission, Lubrification

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

6шт.

20

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil Breather

1шт.

21

100557A1

PLUG, DRAIN,M30 x 2

Semi-Powershift Transmission, Oil

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

272219

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

24

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

25

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 13, 22

7шт.

26

87701779

RIVET,7mm OD

D7

2шт.

Выбрано товаров: 27
