Запчасти Case 580SN (21.111.AC[01]) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, SUPPORT, 2WD (21) - TRANSMISSION

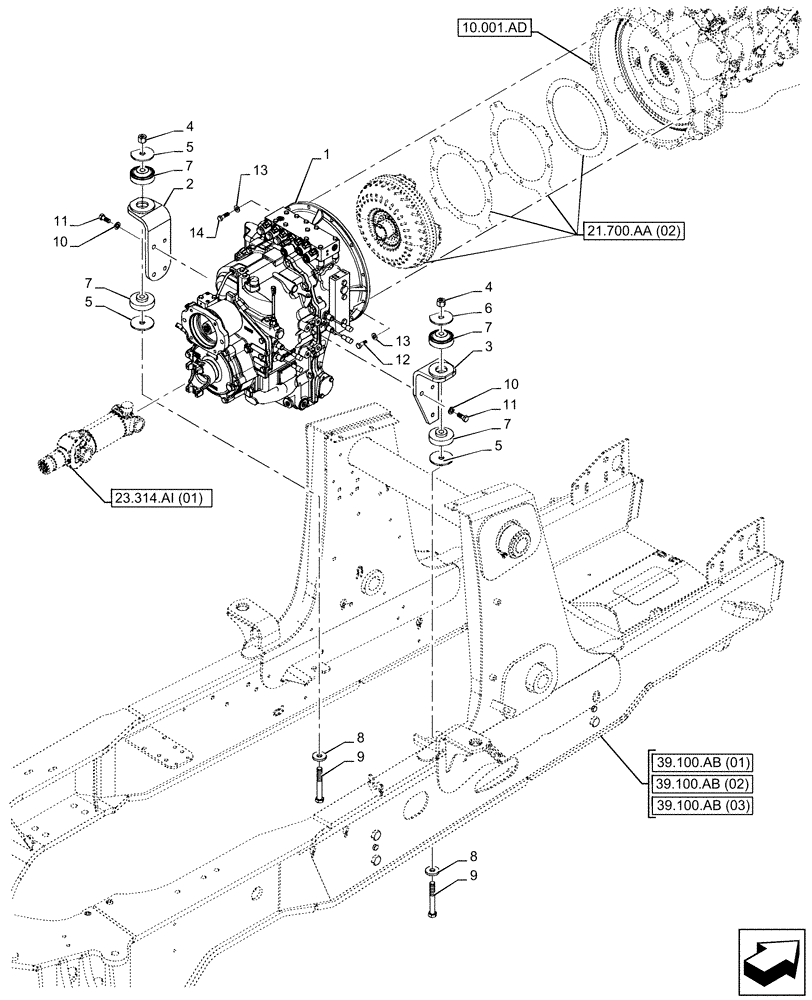

Схема запчастей Case 580SN - (21.111.AC[01]) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, SUPPORT, 2WD (21) - TRANSMISSION
21.700.aa (02)
13
9
8
5
5
11
7
10
8
13
10
7
4
7
7
3
6
11
4
5
1
9
2
14
12
39.100.ab (03)
10.001.ad
39.100.ab (01)
23.314.ai (01)
39.100.ab (02)

Артикул

Название

Примечание

Количество

1

84327511

TRANSMISSION

Semi-Powershift, 2WD

1шт.

2

84567307

BRACKET

Transmission Mount, LH

1шт.

3

84567310

BRACKET

Transmission Mount, RH

1шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

3шт.

6

47395114

WASHER,16.7mm ID x 76.2mm OD x 4.55m Thk, HTS

Flat Edge

1шт.

7

84383342

MOUNT

4шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

9

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

11

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

11шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 14
