Запчасти Case 580SN (21.105.BC) - VAR - 423062 - TRANSMISSION, POWERSHIFT, OIL FILTER (21) - TRANSMISSION

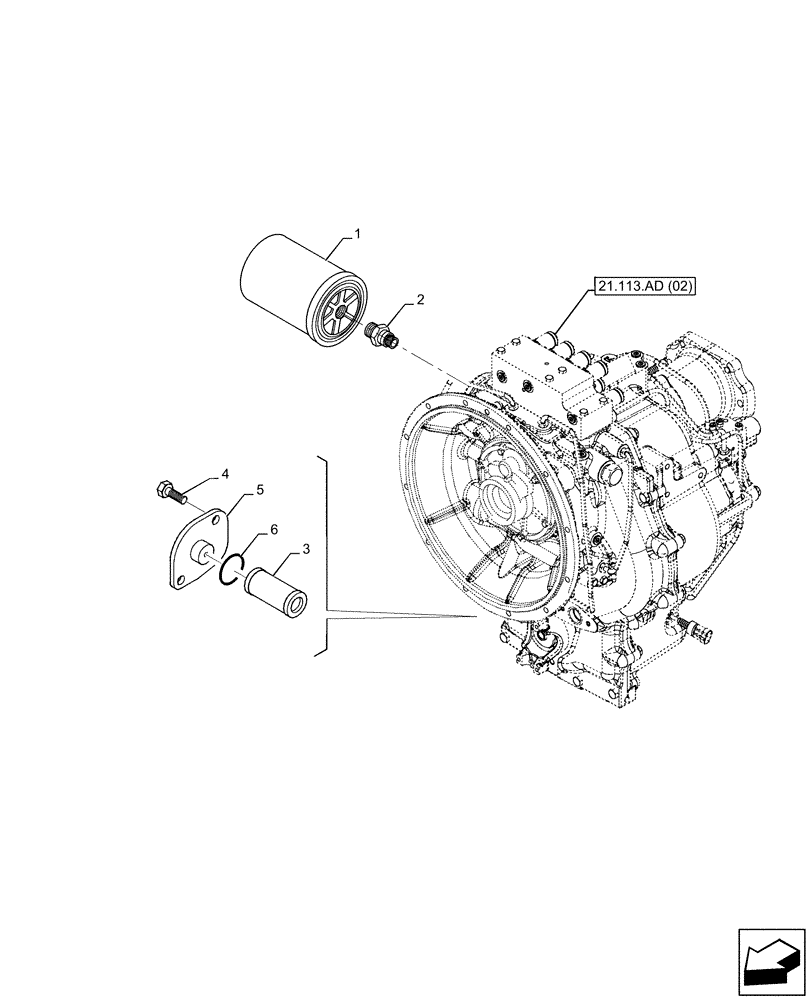

Схема запчастей Case 580SN - (21.105.BC) - VAR - 423062 - TRANSMISSION, POWERSHIFT, OIL FILTER (21) - TRANSMISSION
21.113.ad (02)
6
3
5
2
1
4

Артикул

Название

Примечание

Количество

1

86982180

FILTER,Spin-on, 13/16” – 16, 97mm OD x 1516mm L

Powershift Transmission, Yellow

1шт.

2

181202A1

FITTING

1шт.

3

278534A1

FILTER SCREEN

Powershift Transmission, Oil Suction

1шт.

4

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

181219A1

COVER

Oil Filter

3шт.

6

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

Выбрано товаров: 6
