(90.160.BY) - CAB INTERIOR TRIM, PLUG

Запчасти Case 580SN (90.160.BY) - CAB INTERIOR TRIM, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS

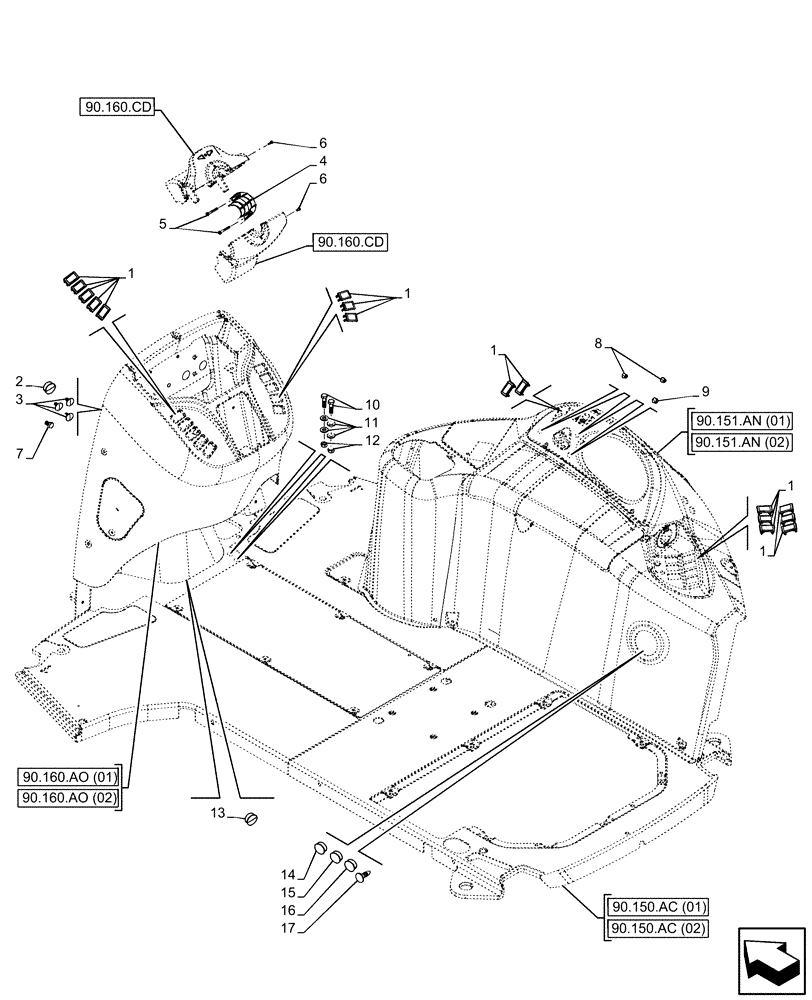

Схема запчастей Case 580SN - (90.160.BY) - CAB INTERIOR TRIM, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ao (01)
10
14
4
8
16
6
1
5
15
11
6
1
1
1
1
7
17
13
3
12
2
9
90.150.ac (02)
90.150.ac (01)
90.151.an (01)
90.160.cd
90.160.cd
90.151.an (02)
90.160.ao (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126844A1

PLUG,1.427” x .62” , Plastic

16шт.

2

87695421

PLASTIC PLUG,1.38" OD

1шт.

3

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

2шт.

4

47575664

COLLAR

1шт.

5

47766621

SCREW,Phil Pan Hd, M5 x 40mm

2шт.

6

84178909

SCREW,M4 x 12mm

2шт.

7

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

8

397569A1

PLUG

2шт.

9

397570A1

PLUG

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

14

353-425

PLUG,0.437 Hole OD

2шт.

15

353-415

PLUG,Dome, 1.500" hole, Nylon

1шт.

16

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

17

411399A1

FASTENER

1шт.
