(90.160.BL) - VAR - 423001 - CAB, RH, SIDE PANEL, MALAYSIAN

Запчасти Case 580SN (90.160.BL) - VAR - 423001 - CAB, RH, SIDE PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

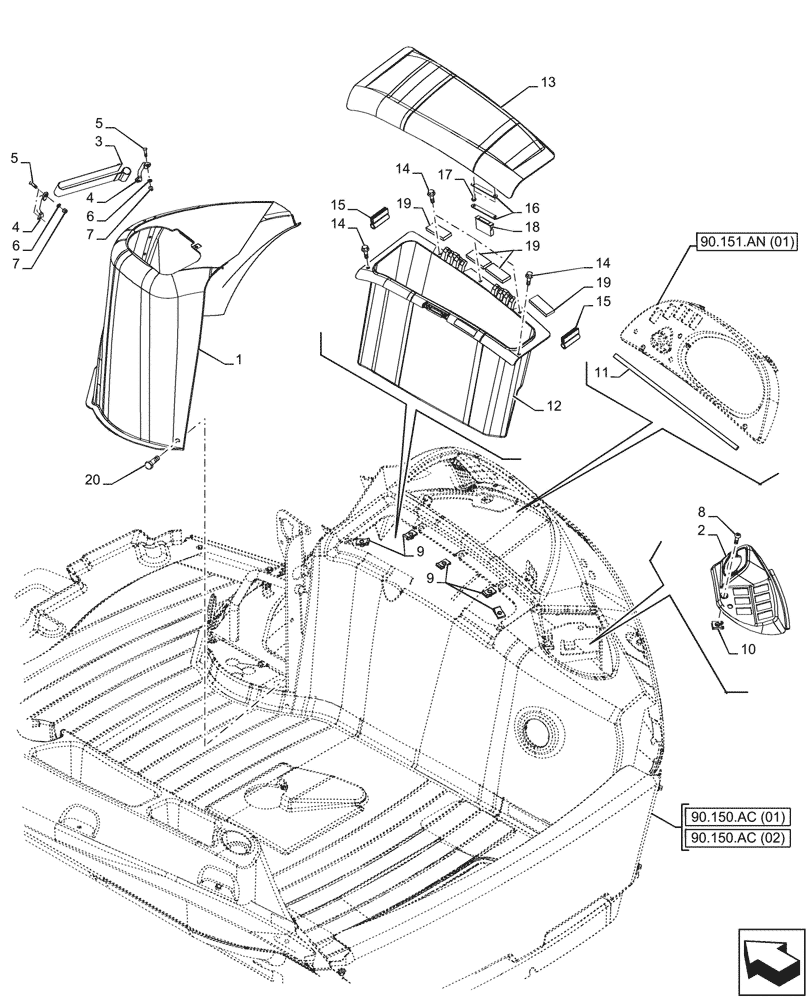

Схема запчастей Case 580SN - (90.160.BL) - VAR - 423001 - CAB, RH, SIDE PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.an (01)
9
13
18
4
12
7
8
19
6
16
9
14
19
15
5
6
20
14
5
2
14
17
4
3
1
7
15
11
19
10
90.150.ac (02)
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87633581

CONSOLE

Wheat

1шт.

2

87576906

BEZEL

1шт.

3

184726A1

FIXING STRIP

1шт.

4

182594A1

HANDLE

2шт.

5

87310184

SCREW,Phillips Drive, Oval HD, M4 x 0.7 x 16mm, SST

4шт.

6

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

8

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

9

833-40406

NUT,M6, U

5шт.

10

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

11

414071A1

SEALING STRIP,480mm

1шт.

12

366632A2

BOX, TOOL

Right Side Storage

1шт.

13

366633A3

LID

1шт.

14

87310098

BOLT,M6 x 20 Full SST BLO

5шт.

15

430471A1

SEAL,40mm L

2шт.

16

375112A1

STRIKER PLATE

2шт.

17

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

2шт.

18

D127335

CATCH

1шт.

19

414092A1

SEALING STRIP,100mm

4шт.

20

87310152

BOLT,M6 x 16 Full SST BLO

1шт.
