Запчасти Case 580SN (90.160.AM[03]) - VAR - 442083 - CAB LEFT-HAND SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

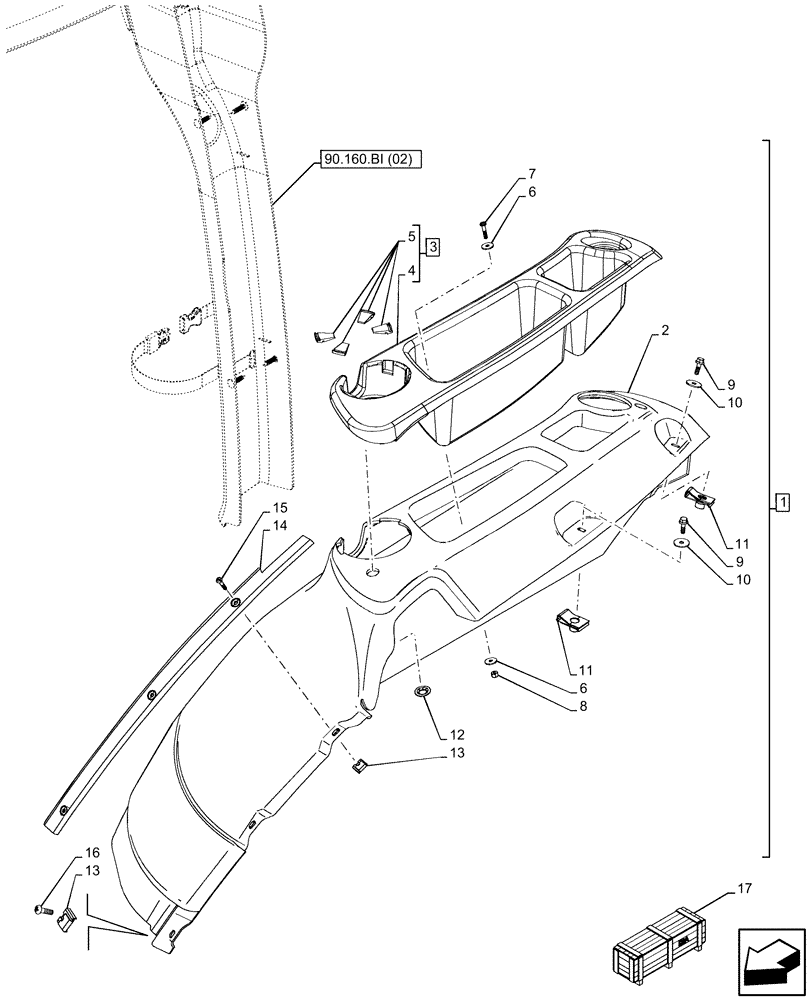

Схема запчастей Case 580SN - (90.160.AM[03]) - VAR - 442083 - CAB LEFT-HAND SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bi (02)
13
6
15
11
9
9
10
6
8
14
10
1
3
12
11
2
4
16
7
5
13
17

Артикул

Название

Примечание

Количество

1

86992245

COVER

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER, Incl in 1

1шт.

3

86992244

TRAY

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

STORAGE, Incl in 3

1шт.

5

86992284

BUMPER,40-50 Durometer

4шт.

6

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

7

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

8

231-14109

LOCK NUT,#10-24, GB

2шт.

9

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

10

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

11

833-40406

NUT,M6, U

2шт.

12

333773A1

PUSH-ON NUT

2шт.

13

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

3шт.

14

397774A3

STRIP

1шт.

15

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

16

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

17

47605400

CONSTRUCTION DIA

Deluxe Conversion, Narrow, Incl 1 - 5, 12, 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 18
