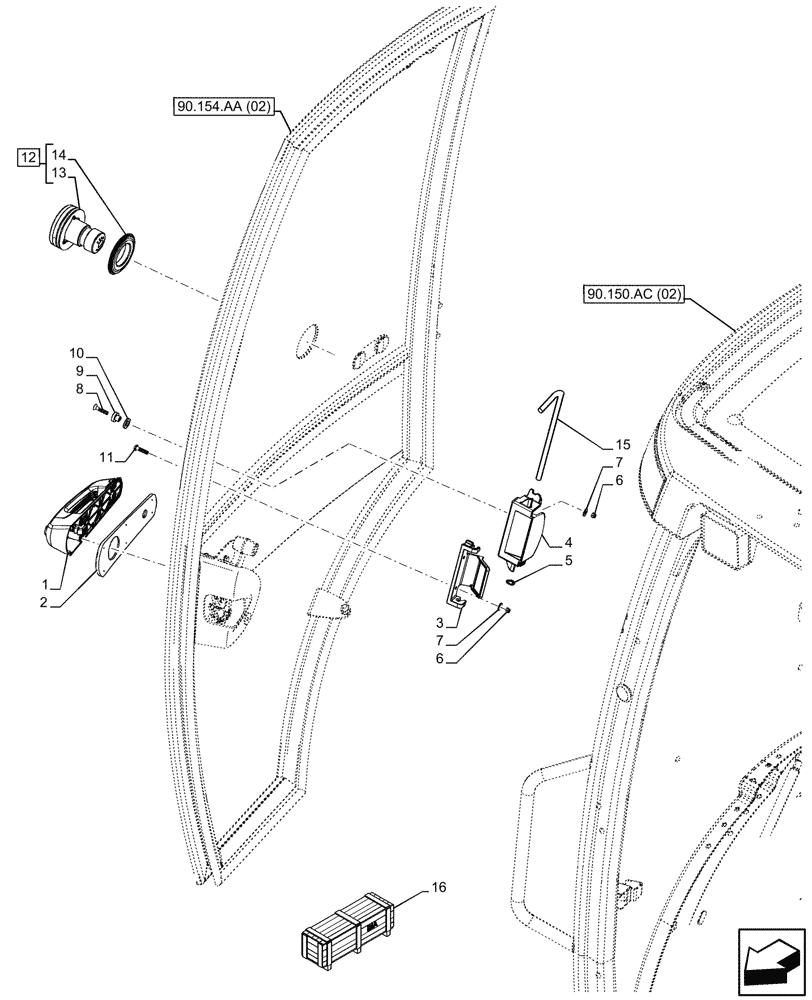

Запчасти Case 580SN (90.154.AC[02]) - VAR - 747853 - CAB DOOR, HANDLE, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224317

HANDLE

1шт.

2

84224344

GASKET,43mm ID, 15.2mm ID, 223.9mm L

1шт.

3

87344859

LATCH

1шт.

4

87344860

HANDLE

1шт.

5

87534717

PUSH-ON NUT,0.625" L

1шт.

6

F45165

SPECIAL NUT,#10-24

2шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

8

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

9

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

10

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

2шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

12

84403980

LATCH

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Latch, Incl in 12

1шт.

14

84355905

RING,80mm OD, 44mm ID

1шт.

15

87534372

ROD,7.9mm OD

1шт.

16

84427155

CONSTRUCTION DIA

Female, DLP Hold Open Latch, Incl 12 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
