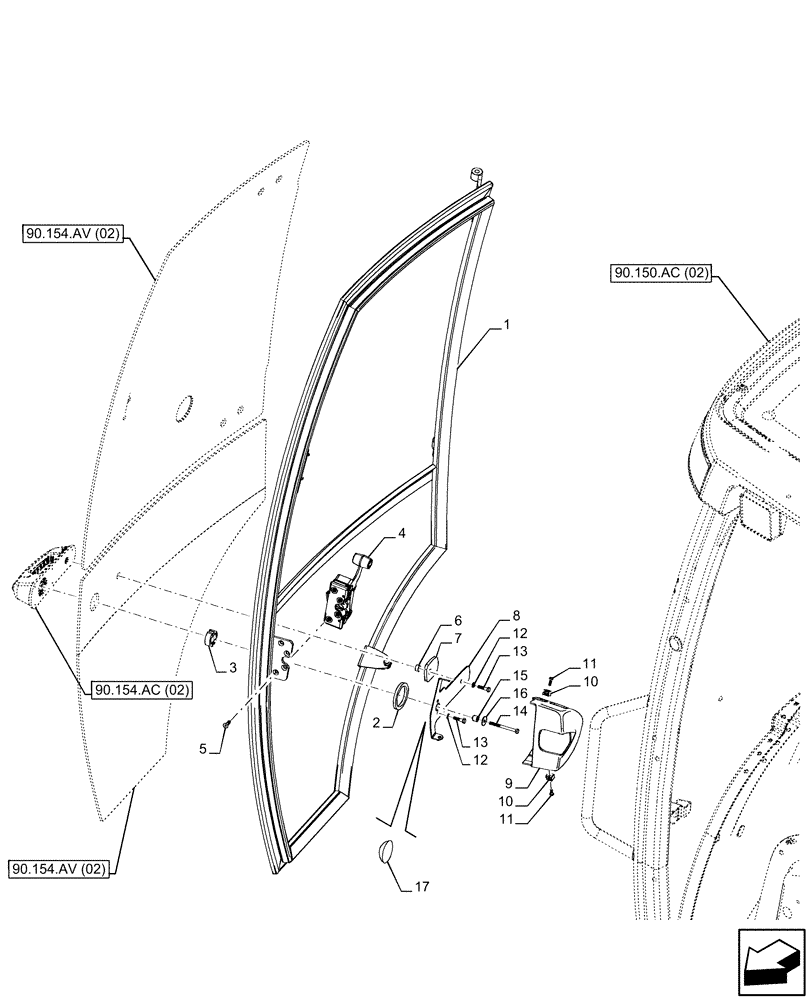

Запчасти Case 580SN (90.154.AA[02]) - VAR - 747853 - CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224327

FRAME

1шт.

2

84224389

SPACER,38.2mm OD x 12mm L

1шт.

3

391838A1

SEAL,50.8mm ID x 65mm OD x 6mm Thk

1шт.

4

84591171

LATCH

1шт.

5

569-4

SCREW,Hex Soc Flat Hd, M6 x 20, 8.8

4шт.

6

84402689

SPACER,6.5mm ID x 14mm OD x 7.5mm L

1шт.

7

391847A1

SEAL,57mm L

1шт.

8

84376131

BRACKET, SUPPORTING

1шт.

9

84378683

COVER

1шт.

10

393209A1

SPRING NUT

2шт.

11

390-100

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

2шт.

12

892-11006

LOCK WASHER,M6

3шт.

13

84405129

SCREW,Hex, M6 x 25mm, Cl 8.8

3шт.

14

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

15

84224345

BUTTON,Black Delrin

1шт.

16

391827A1

SPACER,11.1mm D

2шт.

17

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

1шт.
