(90.151.AN[01]) - VAR - 423001 - CAB, DOOR, INSTRUMENT PANEL, RIGHT SIDE, MALAYSIAN

Запчасти Case 580SN (90.151.AN[01]) - VAR - 423001 - CAB, DOOR, INSTRUMENT PANEL, RIGHT SIDE, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

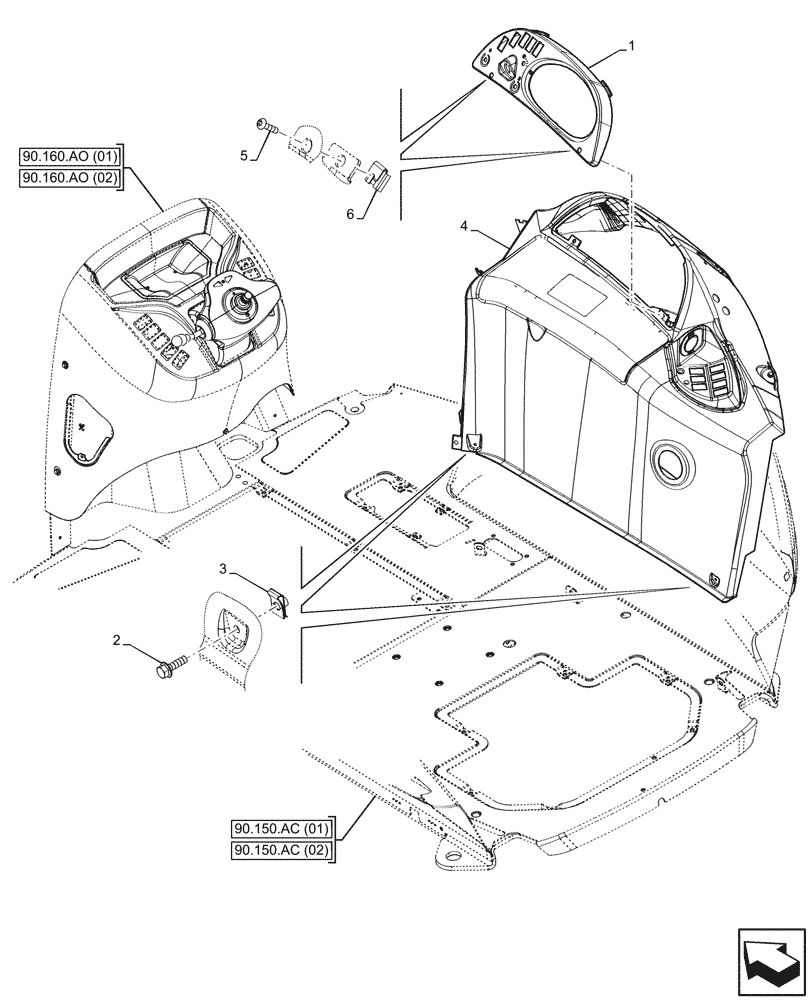

Схема запчастей Case 580SN - (90.151.AN[01]) - VAR - 423001 - CAB, DOOR, INSTRUMENT PANEL, RIGHT SIDE, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (02)
1
2
6
5
4
3
90.160.ao (01)
90.160.ao (02)
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

390255A2

BEZEL

Cnh Black

1шт.

2

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

3

833-40406

NUT,M6, U

2шт.

4

372167A3

CONSOLE

1шт.

5

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

6

86625077

SPRING NUT,J, Ret, #10-24

2шт.

Выбрано товаров: 6
