(90.116.AC) - VAR - 423001 - FENDER EXTENSION, MALAYSIAN

Запчасти Case 580SN (90.116.AC) - VAR - 423001 - FENDER EXTENSION, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

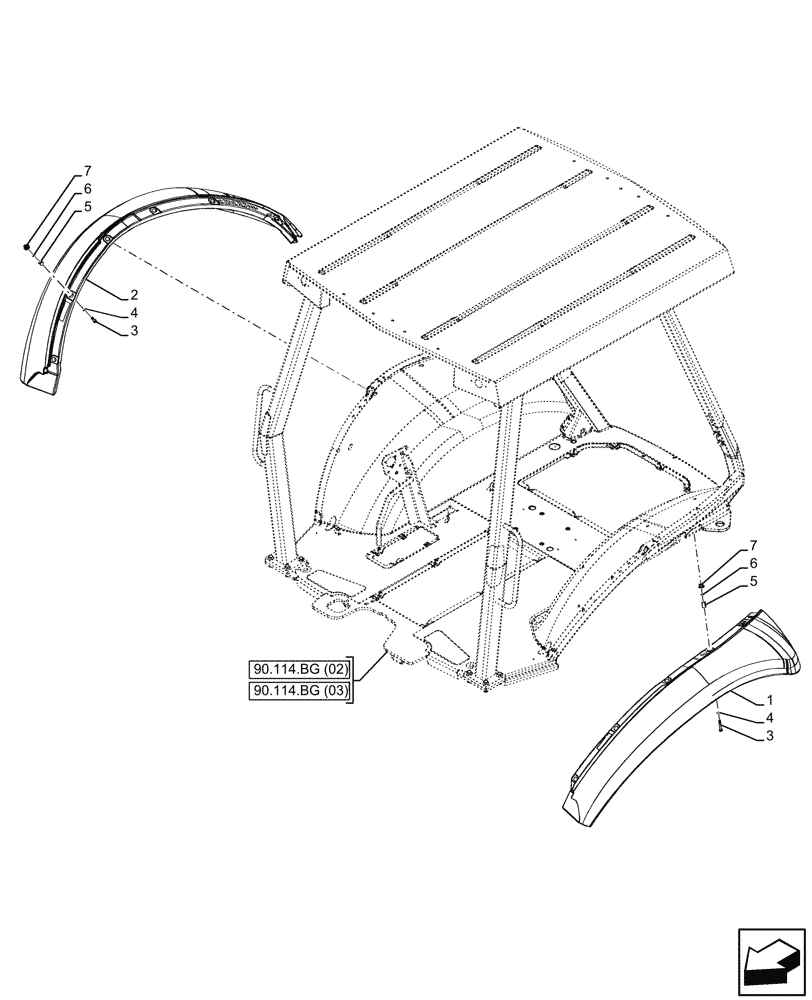

Схема запчастей Case 580SN - (90.116.AC) - VAR - 423001 - FENDER EXTENSION, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (03)
3
6
2
6
5
5
7
3
1
4
7
4
90.114.bg (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

404448A1

EXTENSION

RH

1шт.

2

404449A1

EXTENSION

LH

1шт.

3

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

12шт.

4

892-11008

LOCK WASHER,8mm ID

12шт.

5

405275A1

SPACER,9.8mm ID x 15.9mm OD x 26.3mm L

12шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

12шт.

7

345231A1

FASTENER,M8

12шт.
