(90.114.BG[04]) - VAR - 423001 - CANOPY, COVER, PLUG

Запчасти Case 580SN (90.114.BG[04]) - VAR - 423001 - CANOPY, COVER, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS

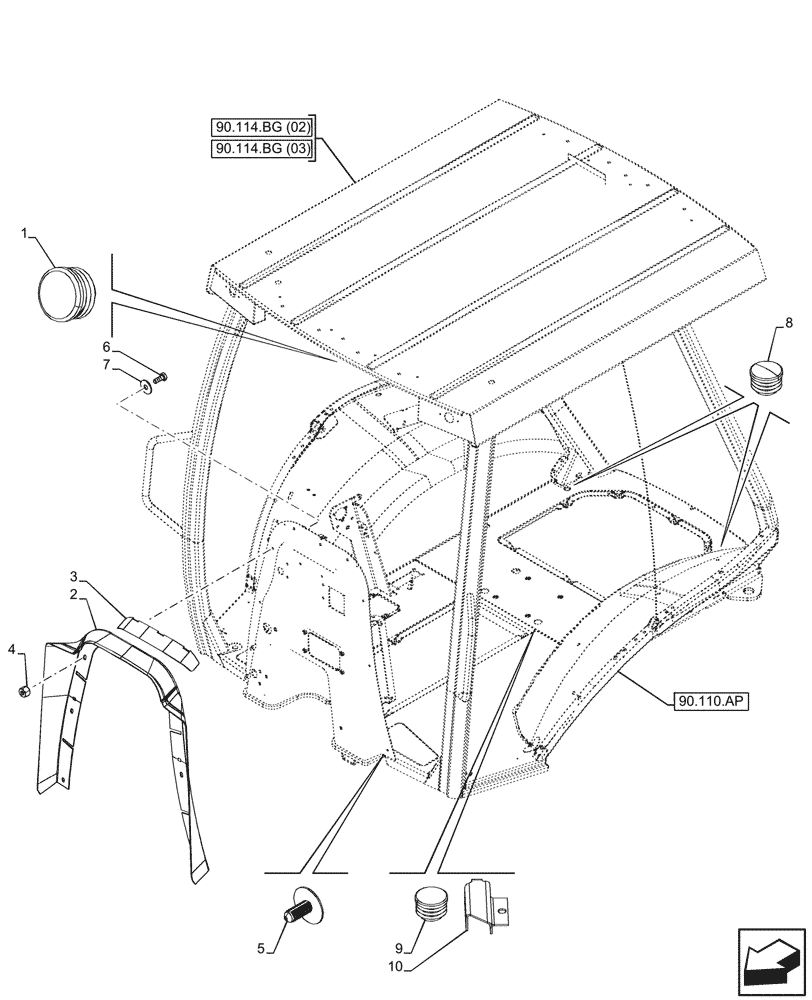

Схема запчастей Case 580SN - (90.114.BG[04]) - VAR - 423001 - CANOPY, COVER, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.ap
3
4
1
2
8
5
6
7
10
9
90.114.bg (02)
90.114.bg (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

411549A1

PLUG

1шт.

2

396938A3

MOLDING

Firewall

1шт.

3

395478A3

BRACKET

Firewall Molding

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

5

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

9шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

7

495-81001

WASHER,5/16"

3шт.

8

382298A1

PLUG

2шт.

9

353-413

PLUG,Dome, 1.187" hole, Nylon

2шт.

10

186351A1

GUARD

Seat Switch Harness

1шт.

Выбрано товаров: 10
