Запчасти Case 580SN (90.110.AV[03]) - VAR - 423000 - PLATFORM, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

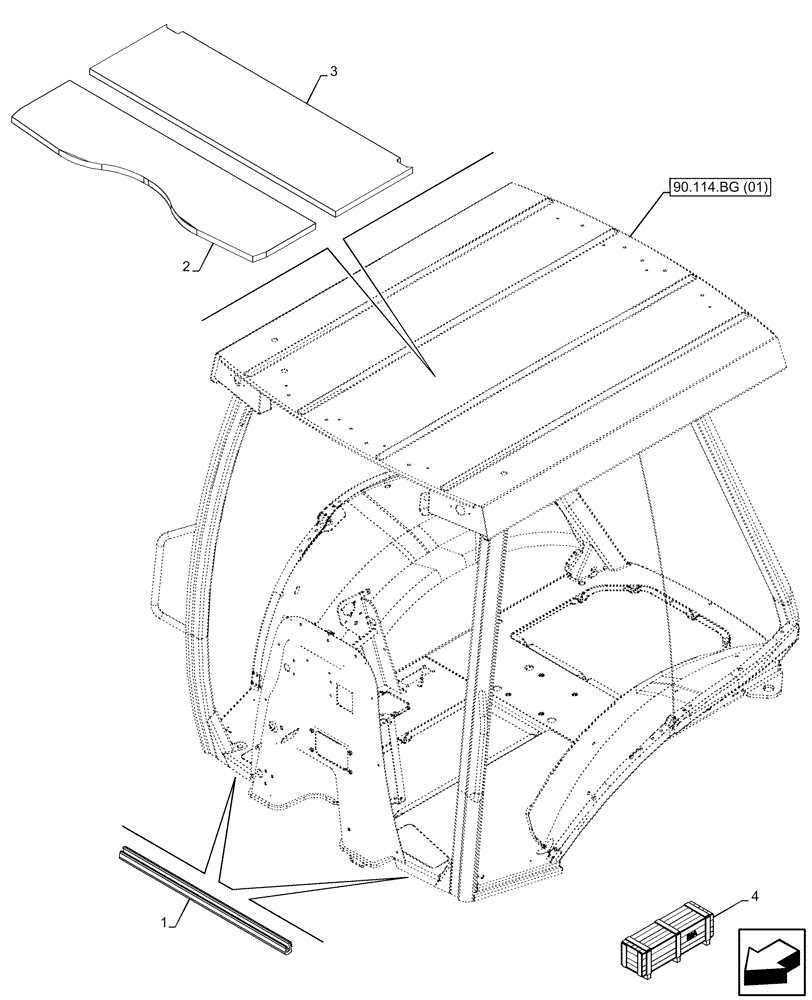

![Схема запчастей Case 580SN - (90.110.AV[03]) - VAR - 423000 - PLATFORM, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5337884.png)
90.114.bg (01)
2
4
1
3
№
Артикул
Название
Примечание
Количество
1
395793A1
PROTECTION STRIP
2шт.
2
431583A1
PANEL
1шт.
3
431584A1
PANEL
1шт.
4
47605397
CONSTRUCTION DIA
Canopy Conversion Narrow, Incl 1 - 3
1шт.
Valid for 580N, 580SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
4
47605399
CONSTRUCTION DIA
Canopy Conversion Wide, Incl 1 - 3
1шт.
Valid for 580SN WT, 590SN Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
4
84275492
CONSTRUCTION DIA
Canopy ASM Deluxe Wide, Incl 1 - 3
1шт.
Valid for 580N Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
