(90.110.AV[02]) - VAR - 423001 - OPERATORS COMPARTMENT, REAR, PANEL, MALAYSIAN

Запчасти Case 580SN (90.110.AV[02]) - VAR - 423001 - OPERATORS COMPARTMENT, REAR, PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

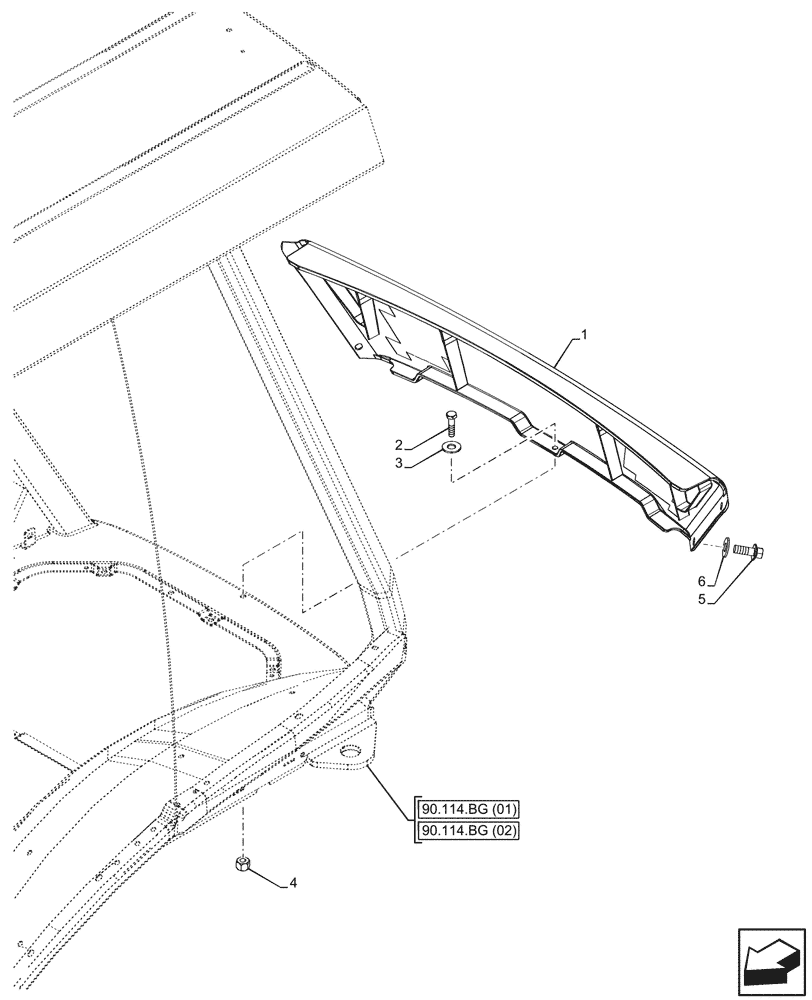

Схема запчастей Case 580SN - (90.110.AV[02]) - VAR - 423001 - OPERATORS COMPARTMENT, REAR, PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (02)
3
1
4
2
5
6
90.114.bg (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86992977

PANEL

Rear Closure Canopy

1шт.

2

87310154

BOLT,Hex, M6 x 25, Cl. 8.8

1шт.

3

87310185

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
