(90.110.AV[01]) - VAR - 442082 - CANOPY, PANEL, REAR

Запчасти Case 580SN (90.110.AV[01]) - VAR - 442082 - CANOPY, PANEL, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

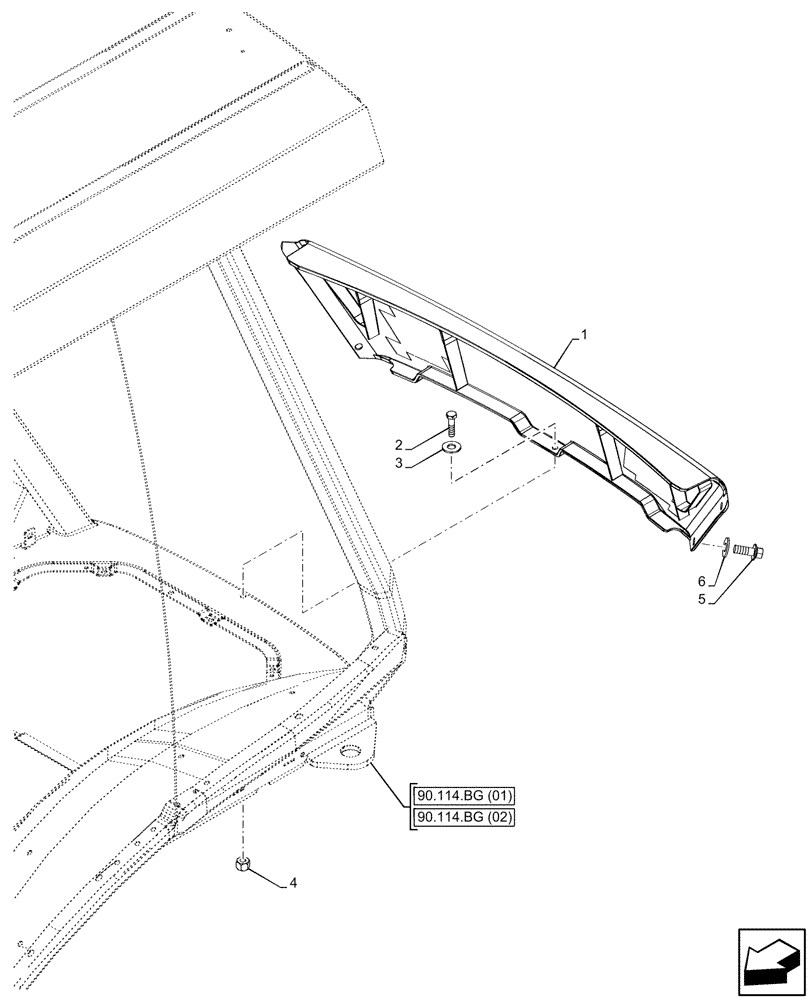

Схема запчастей Case 580SN - (90.110.AV[01]) - VAR - 442082 - CANOPY, PANEL, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (01)
6
5
1
2
4
3
90.114.bg (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86992977

PANEL

Rear Closure Canopy

1шт.

2

87310154

BOLT,Hex, M6 x 25, Cl. 8.8

M8 x 25

1шт.

3

87310185

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 20 x 1.6mm

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
