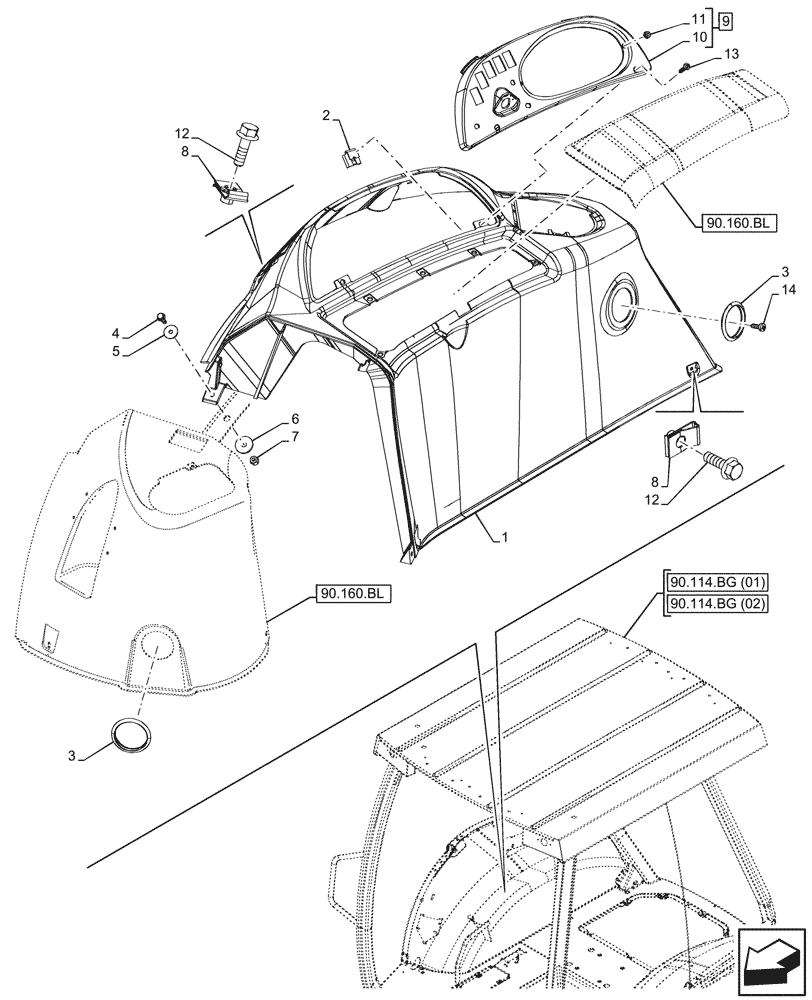

Запчасти Case 580SN (90.110.AH[02]) - VAR - 423001 - CANOPY, CONSOLE, INSTRUMENT PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

360250A2

CONSOLE

Wheat

1шт.

2

86625077

SPRING NUT,J, Ret, #10-24

2шт.

3

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

4

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

5

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

6

407660A1

WASHER,6.96mm ID x 50mm OD x 1.5mm Thk

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

1шт.

8

833-40406

NUT,M6, U

4шт.

9

391818A2

BEZEL

ASSY, Incl 10 - 11

1шт.

10

NSS

NOT SOLD SEPARAT

Bezel, Instrument Cluster - Caopy, Incl in 9

1шт.

11

390258A1

INSERT

2шт.

12

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

13

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

2шт.

14

87310144

SELF-TAP SCREW,Pan Head, M6 x 12.7mm

4шт.
