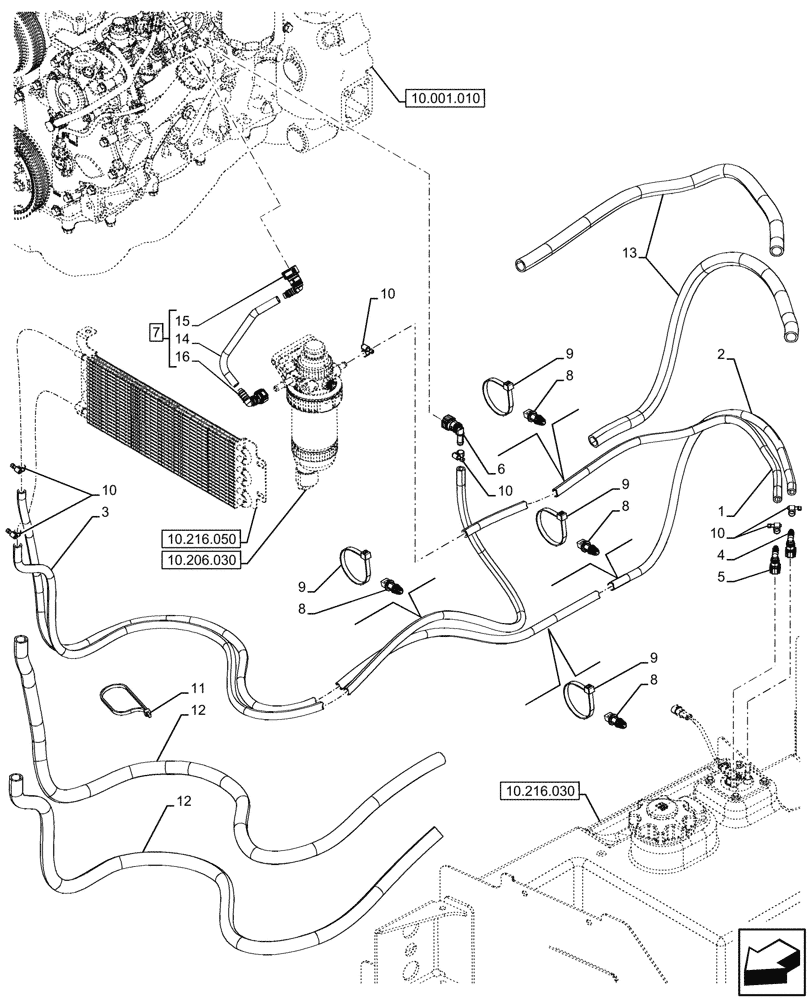

Запчасти Case 580SN (10.216.040) - FUEL TANK (10) - ENGINE

1

47652792

FUEL HOSE,9.5mm ID x 1170mm L

Suction, Tank to Filter

1шт.

2

47589005

FUEL HOSE,9.5mm ID x 2770mm L

Return, Cooler to Tank

1шт.

3

47589006

FUEL HOSE,9.5mm ID x 1700mm L

Suction, Engine to Cooler

1шт.

4

47551317

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

5

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

90°, for Fuel Hose 9.5mm ID

1шт.

6

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

7

84391629

RIGID TUBE

ASSY, Fuel, Filter to Engine, Incl 14 - 16

1шт.

8

47655460

FASTENER

4шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

10

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Clamp

6шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

12

47611880

HOSE PROTECTION,19mm ID x 1105mm L

2шт.

13

84249061

HOSE PROTECTION,19mm ID x 820mm L

2шт.

14

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

15

84375791

FITTING,11.8mm ID, 10mm OD

1шт.

16

84416493

HOSE FITTING,9.5mm OD, 10mm ID, 90 Degree

1шт.
