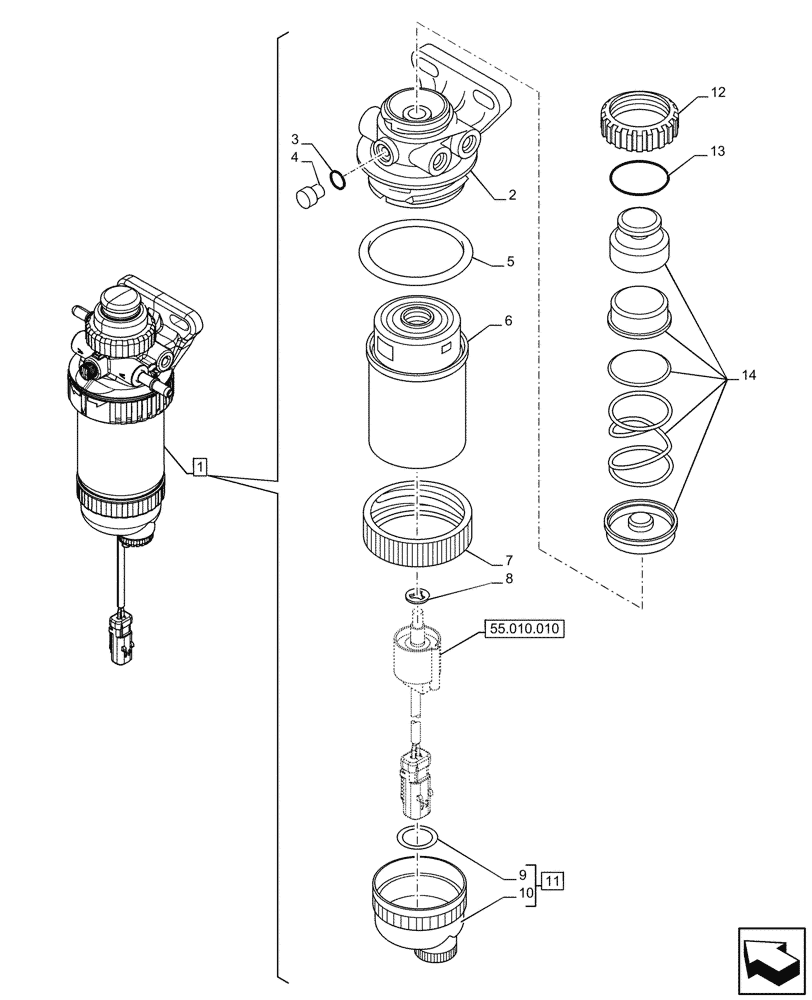

Запчасти Case 580SN (10.206.020) - FUEL FILTER/WATER SEPARATOR, COMPONENTS (10) - ENGINE

1

47541051

FUEL FILTER,W/ WIF Sensor

ASSY, Incl 2 - 14

1шт.

See also Fuel Filter Components in Figure 55.010.010

1шт.

2

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 1

1шт.

3

87840177

O-RING

Air Vent

1шт.

4

87840178

PLUG

Air Vent

1шт.

5

87840171

SEAL

Dust

1шт.

6

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

1шт.

7

87840170

LOCKING RING

1шт.

8

87612469

SEALING WASHER

1шт.

9

87612471

SEAL

Water Bowl

1шт.

10

NSS

NOT SOLD SEPARAT

Bowl, Incl in 11

1шт.

11

87801005

KIT

ASSY, Water Bowl, Incl 9, 10

1шт.

12

87840173

RETAINER

1шт.

13

87840174

O-RING

Top Cap

1шт.

14

87612472

KIT

Hand Primer, Reverse Flow

1шт.
