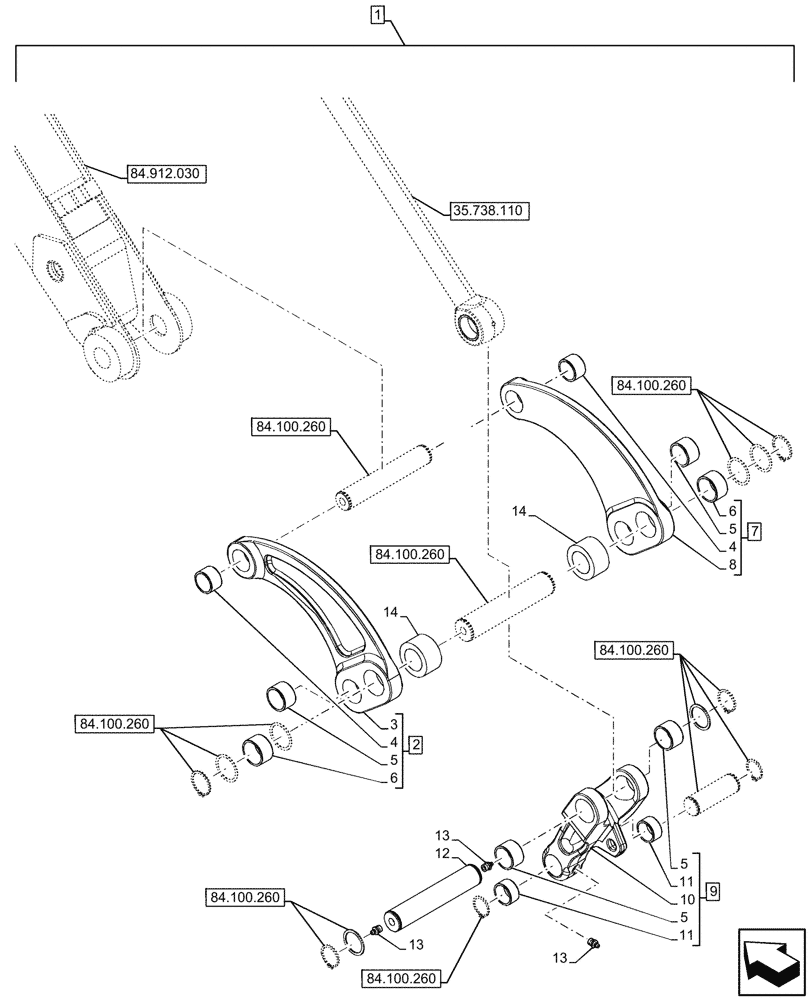

Запчасти Case 580SN (88.100.84[10]) - DIA KIT, STANDARD DIPPER, UNIVERSAL, COUPLING, CONVERSION, BACKHOE ARM, LINK (88) - ACCESSORIES

1

48059282

CONSTRUCTION DIA

Universal Coupler, Conversion, Incl 2 - 14

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47946372

LINK

ASSY, Grey, Incl 3, 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

5

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

4шт.

6

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

2шт.

7

47946371

LINK

ASSY, Grey, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Link, Incl in 7

1шт.

9

47959642

LINK

ASSY, Grey, Incl 5 (Qty 2), 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Incl in 9

1шт.

11

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

12

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

14

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.
