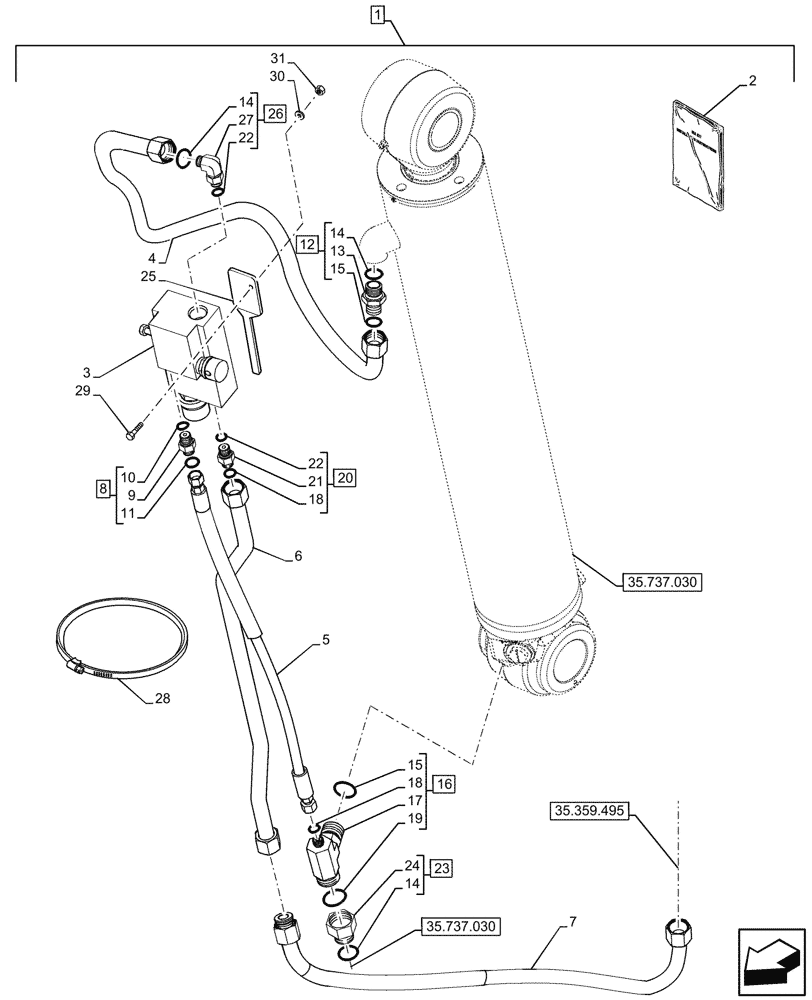

Запчасти Case 580SN (88.100.35[30]) - DIA KIT, DIPPER, LOCK VALVE (88) - ACCESSORIES

1

84588434

CONSTRUCTION DIA

Dipper, Lock Valve, Incl 2 - 31

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588445

INSTRUCTION

1шт.

3

87353314

SAFETY VALVE

ASSY

1шт.

4

84536912

HYD TUBE

Dipper Lock Valve, Cylinder

1шт.

5

84574638

HYDRAULIC HOSE,6.3mm ID x 870mm L

Dipper Lock Valve, Pilot Control

1шт.

6

84536911

HYD TUBE

Dipper Lock Valve, Inlet

1шт.

7

84574589

HYDRAULIC HOSE,16mm ID x 2050mm L

Dipper Lock Valve, Pilot Control

1шт.

8

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 13, 14 (Qty 1), 15 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

84257031

FITTING,9/16-18 ORFS x 3/16-12 ORFS x 1/16-12 ORB

ASSY, Incl 15 (Qty 1), 17, 18 (Qty 1), 19

1шт.

17

NSS

NOT SOLD SEPARAT

Tee, Incl in 16

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 18 (Qty 1), 21, 22 (Qty 1)

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

23

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

ASSY, Incl 14 (Qty 1), 24

1шт.

24

NSS

NOT SOLD SEPARAT

Reducer, Incl in 23

1шт.

25

84558827

BRACKET

1шт.

26

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 14 (Qty 1), 22 (Qty 1), 27

1шт.

27

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 26

1шт.

28

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

1шт.

29

9515541

SCREW,Hex, M8 x 55mm, Cl 8.8

1шт.

30

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

31

9706690

NUT,M8 x 1.25, Cl 8

1шт.
