(88.100.35[21]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL

Запчасти Case 580SN (88.100.35[21]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES

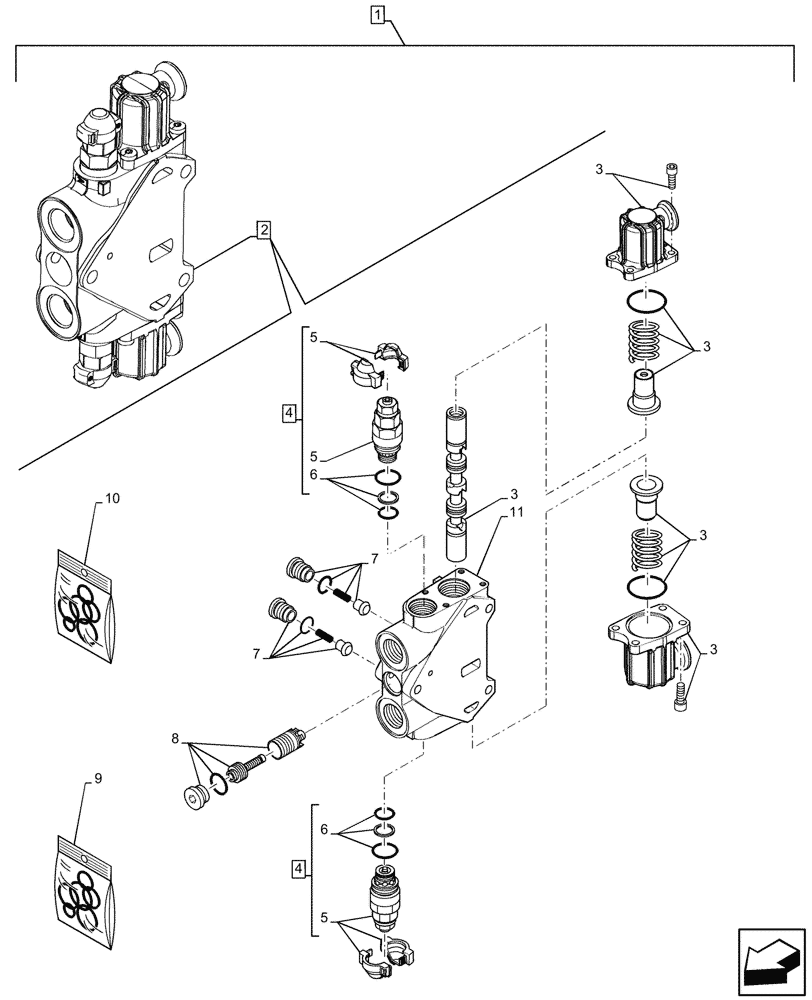

Схема запчастей Case 580SN - (88.100.35[21]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES
4
3
3
1
7
8
9
4
6
6
2
3
3
7
3
11
5
5
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84376312

CONSTRUCTION DIA

Bi Auxiliary Backhoe Valve Section, Pilot Control, Incl 2 - 11

1шт.

2

84278691

HYD VALVE SECTION

ASSY, Bi-Dir, Pilot Control, Incl 3 - 11

1шт.

3

85826344

KIT,Operation

Operation

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220bar

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

2шт.

6

85811933

SEAL KIT,Secondary Valve

Secondary Valve

2шт.

7

85811938

KIT,Check Valve

Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Control Valve Section

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.
