(88.100.35[20]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL

Запчасти Case 580SN (88.100.35[20]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES

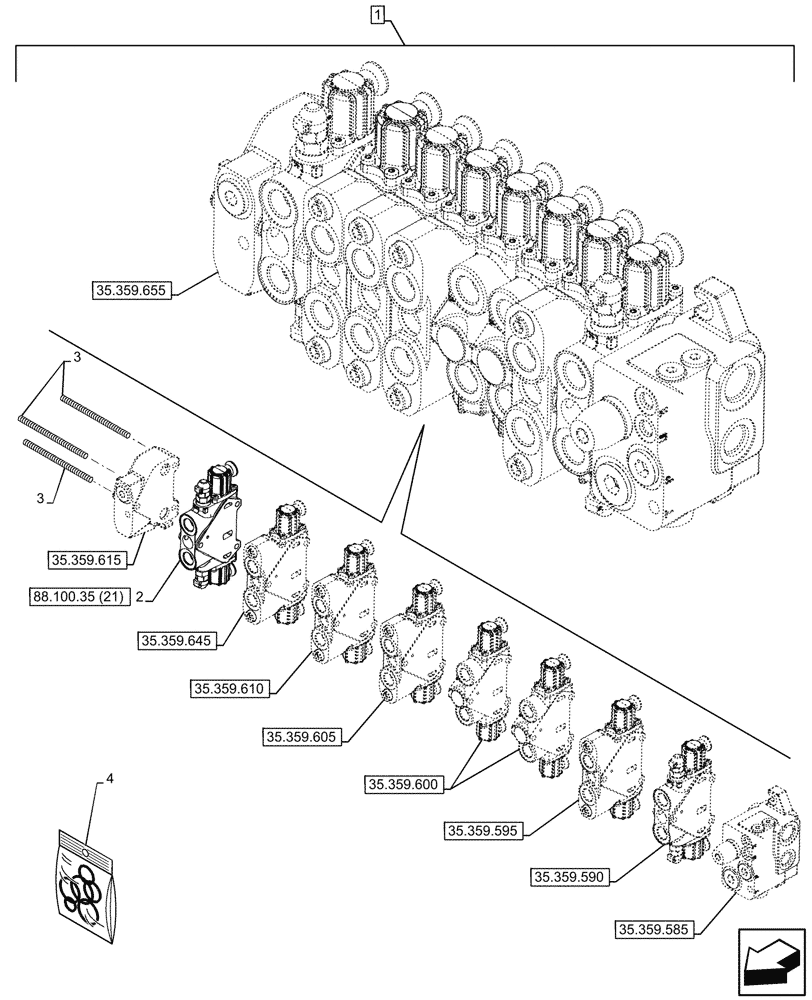

Схема запчастей Case 580SN - (88.100.35[20]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES
88.100.35 (21)
4
3
3
2
1
35.359.655
35.359.590
35.359.585
35.359.615
35.359.600
35.359.645
35.359.610
35.359.605
35.359.595
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84376312

CONSTRUCTION DIA

Bi Auxiliary Backhoe Valve Section, Pilot Control, Incl 2 - 4

1шт.

2

84278691

HYD VALVE SECTION

ASSY, Bi-Dir, Pilot Control

1шт.

3

87451933

BOLT AND NUT

for 7 Spool

3шт.

3

87447477

SET OF PARTS

for 8 Spool

3шт.

4

85819148

SEAL KIT,Between Control Valve Sections

1шт.
