Запчасти Case 580SN (84.100.250) - BACKHOE BUCKET, MECH. COUPLER, LINK 14FT (84) - BOOMS, DIPPERS & BUCKETS

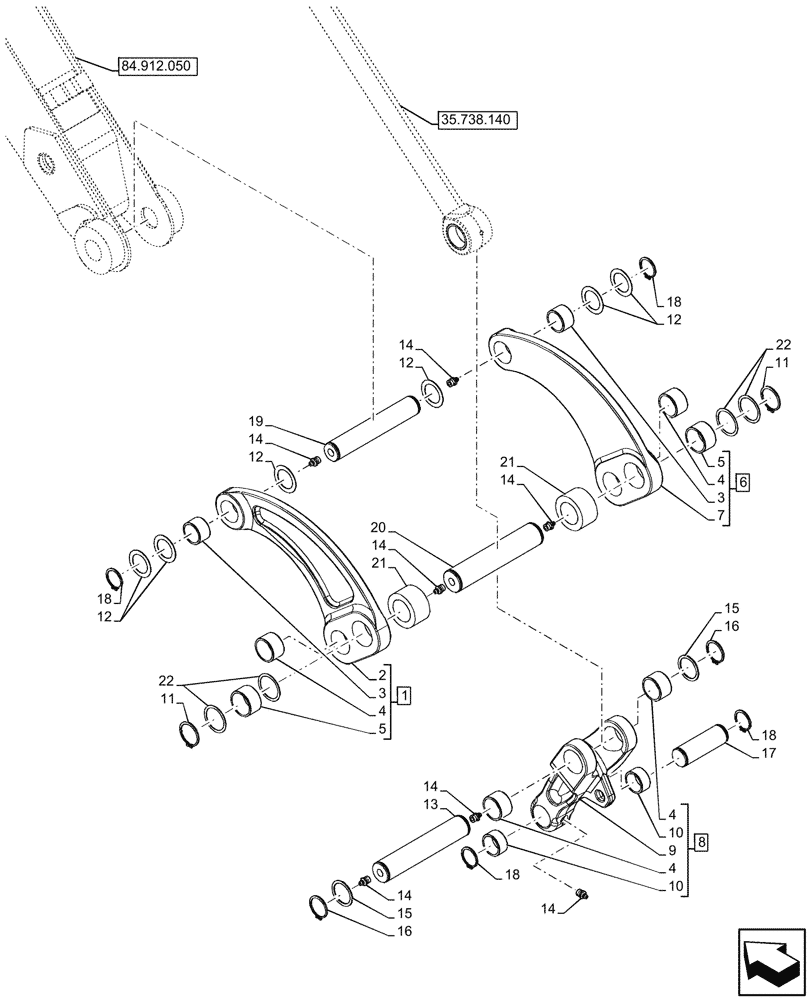

Схема запчастей Case 580SN - (84.100.250) - BACKHOE BUCKET, MECH. COUPLER, LINK 14FT (84) - BOOMS, DIPPERS & BUCKETS
84.912.050
9
14
20
18
14
10
12
13
14
12
18
22
18
15
16
16
4
21
7
3
14
14
4
3
12
11
12
10
4
2
8
5
17
19
4
1
18
6
21
11
15
22
5
14
14
35.738.140

Артикул

Название

Примечание

Количество

1

47946372

LINK

ASSY, Grey, Incl 2, 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

4шт.

5

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

2шт.

6

47946371

LINK

ASSY, Grey, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Link, Incl in 6

1шт.

8

47959642

LINK

ASSY, Grey, Incl 4 (Qty 2), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Incl in 8

1шт.

10

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

11

84224886

RING,60mm ID, Ext

2шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

13

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

15

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

16

84233536

RING,55mm ID, Ext

2шт.

17

84223652

PIN,50mm OD x 151mm L

Dump Link to Coupler

1шт.

18

87016943

RING, SNAP,50mm ID , Ext

4шт.

19

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

20

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

21

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

22

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

Выбрано товаров: 22
