Запчасти Case 580SN (82.300.050) - VAR - 423003, 747657 - BUCKET W/ CUTTING EDGE, 93INCH/2362MM LONG LIP (82) - FRONT LOADER & BUCKET

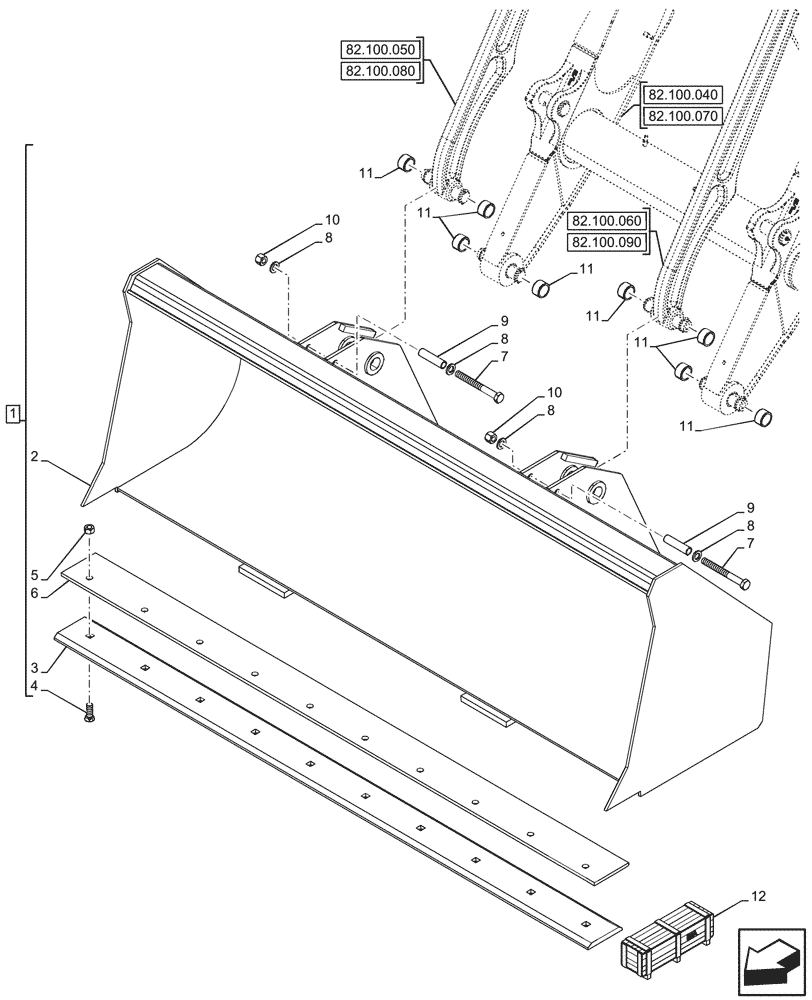

Схема запчастей Case 580SN - (82.300.050) - VAR - 423003, 747657 - BUCKET W/ CUTTING EDGE, 93INCH/2362MM LONG LIP (82) - FRONT LOADER & BUCKET
82.100.060
9
8
6
10
7
11
11
2
11
8
12
11
11
10
1
8
4
3
8
9
11
5
7
82.100.080
82.100.040
82.100.070
82.100.050
82.100.090

Артикул

Название

Примечание

Количество

1

84422637

BUCKET,93 Inch W/ Cutting Edge

ASSY, Grey, 1.25YD 93Inch/2362mm LL, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

10шт.

6

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

1шт.

7

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

8

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

9

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

10

9672396

NUT

2шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

2шт.

12

84482604

BUCKET

Bucket 93 Inch with Cutting Edge, Incl 1 - 11

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models only

1шт.

Выбрано товаров: 13
