Запчасти Case 580SN (05.100.041) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

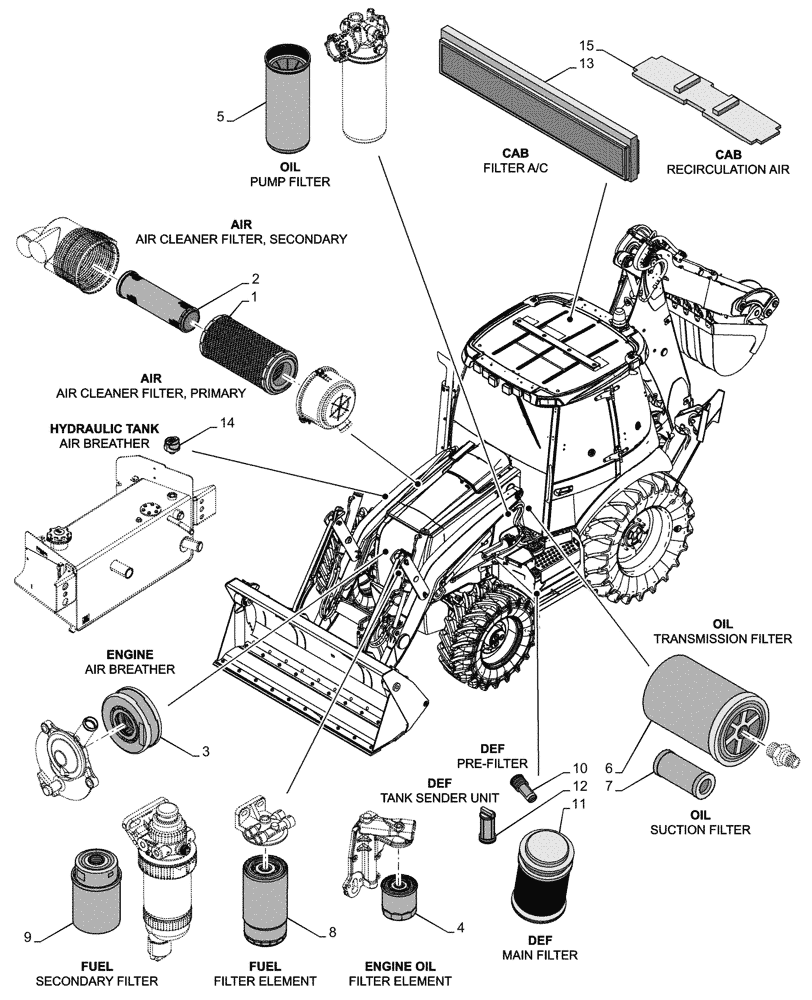

Схема запчастей Case 580SN - (05.100.041) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE
9
2
4
13
5
3
11
10
7
6
15
1
12
8
14

Артикул

Название

Примечание

Количество

1

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

Replace every 1000 Hours or at Warning Message

1шт.

2

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

Replace every 1000 Hours or at Warning Message

1шт.

3

5801686484

FILTER

Engine Breather / Blow-by

1шт.

Replace every 1500 Hours

1шт.

4

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

Replace every 500 Hours

1шт.

5

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Hydraulic Pump

1шт.

Replace after Initial 100 Hours and then every 1000 Hours or at Warning Message

1шт.

6

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

Replace after Initial 100 Hours and then every 1000 Hours

1шт.

7

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

Replace after Initial 100 Hours and then every 1000 Hours

1шт.

8

5801477167

FILTER CARTRIDGE

Fuel, on Engine

1шт.

Replace after Initial 100 Hours and then every 500 Hours

1шт.

9

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

Secondary, W/ WIF Sensor

1шт.

Replace after Initial 100 Hours and then every 500 Hours

1шт.

10

47802545

FILTER

DENOX Pre-Filter, on DENOX Control Unit

3шт.

Replace every 3000 Hours

1шт.

11

47748585

SERVICE KIT

DENOX Main Filter, on DENOX Control Unit

1шт.

Replace every 3000 Hours

1шт.

12

47674634

FILTER,11.2mm OD x 22.7 L, 70 Microns

on DEF Tank Sender Unit

1шт.

13

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Fresh Air, Recirculation

1шт.

14

84329587

BREATHER

Hydraulic Tank

1шт.

Replace every 1000 Hours

1шт.

15

377594A5

FILTER

Air Recirculation

1шт.

Выбрано товаров: 27
