(55.518.020) - VAR - 423000 - DELUXE CANOPY, WINDSHIELD WIPER, MOTOR, ARM, BLADE

Запчасти Case 580SN (55.518.020) - VAR - 423000 - DELUXE CANOPY, WINDSHIELD WIPER, MOTOR, ARM, BLADE (55) - ELECTRICAL SYSTEMS

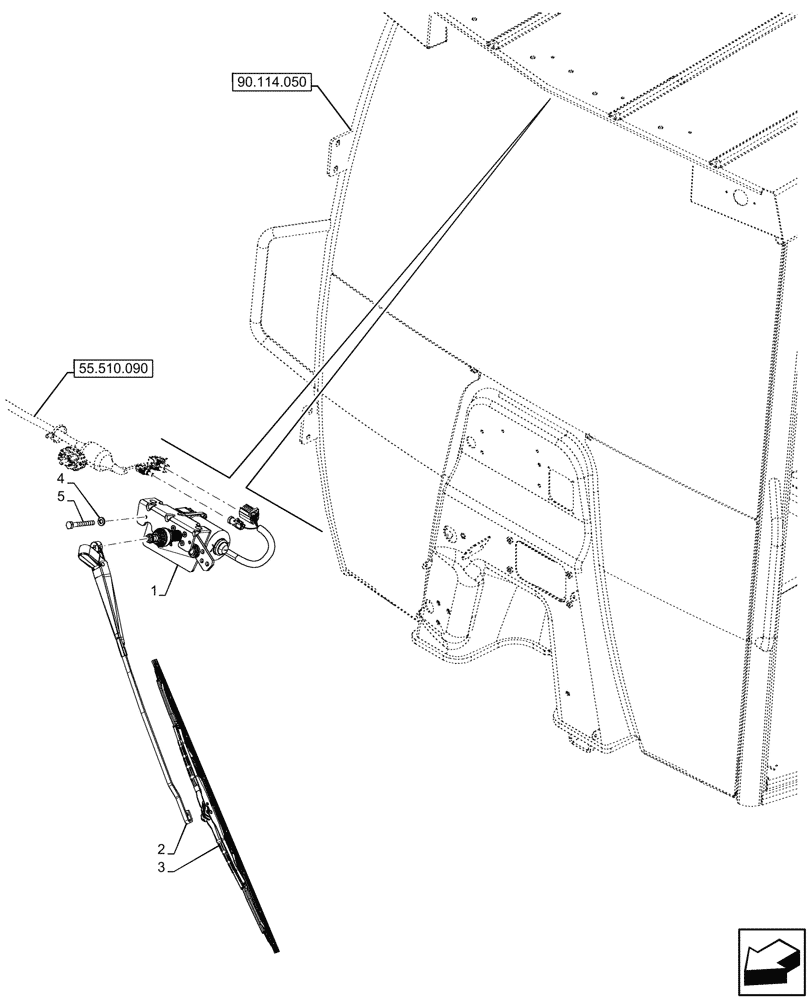

Схема запчастей Case 580SN - (55.518.020) - VAR - 423000 - DELUXE CANOPY, WINDSHIELD WIPER, MOTOR, ARM, BLADE (55) - ELECTRICAL SYSTEMS
90.114.050
5
2
4
3
1
55.510.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87669381

WIPER MOTOR,12V

1шт.

2

84562946

WIPER ARM,Single, 550mm

Front

1шт.

3

87669761

WIPER BLADE,600mm L

Front

1шт.

4

892-11006

LOCK WASHER,M6

2шт.

5

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.
