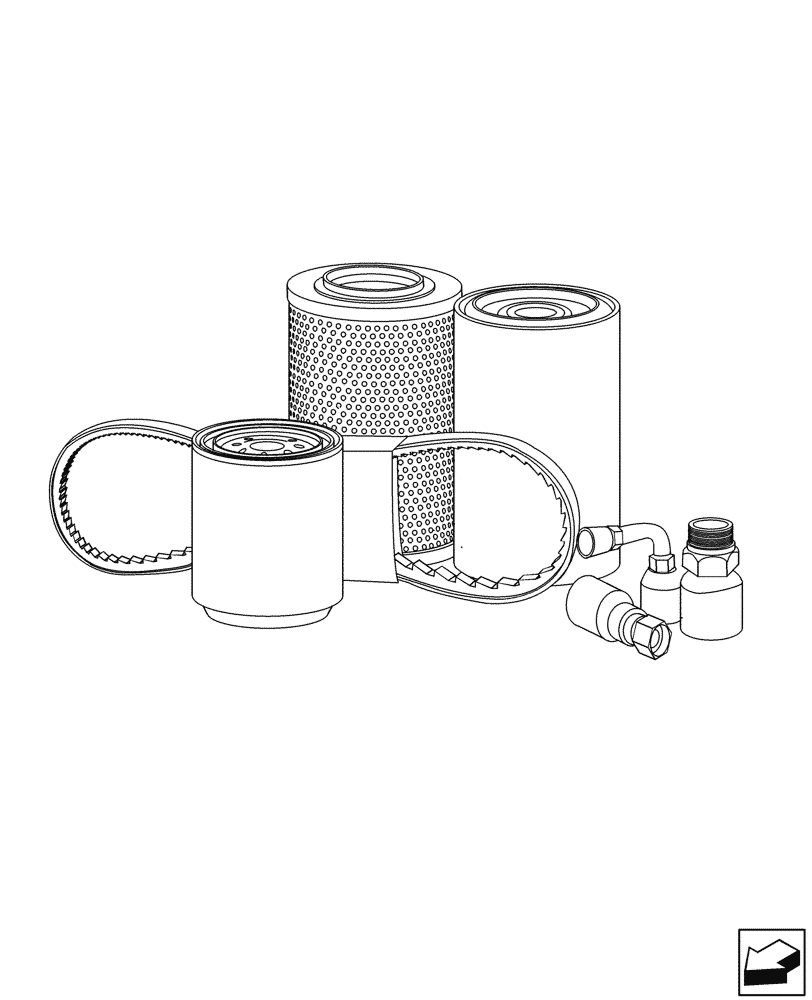

Запчасти Case 580SN (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

8099173

GASKET KIT

Engine Overhaul (Includes all the Engine Gaskets)

1шт.

2

8099174

GASKET KIT

Engine Valve Adjustment (Includes all the Cylinder Head Gaskets)

1шт.

3

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

1шт.

Valid for 580N EP and 590SN Models only

1шт.

4

5801450758

CYLINDER HEAD GASKET,0.69mm Thk

1шт.

Valid for 580N EP and 590SN Models only

1шт.

5

5801753236

CYLINDER HEAD GASKET,0.8mm Thk

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

6

5801753235

CYLINDER HEAD GASKET

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

7

5801446795

GASKET

Valve Cover

1шт.

Valid for 580N EP and 590SN Models only

1шт.

8

5801714864

GASKET

Valve Cover

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

9

504379050

GASKET

Crankcase Front Cover

1шт.

10

504179443

OIL PAN GASKET SET

1шт.

11

5801509267

GASKET

Front

1шт.

12

504170332

MANIFOLD GASKET

Exhaust

1шт.

13

504380898

MANIFOLD GASKET

Intake

1шт.

Valid for 580N EP and 590SN Models only

1шт.

14

5801705579

GASKET

Intake Manifold Spacer

2шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

15

5801752064

GASKET

Intake Manifold

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

16

504235816

GASKET

Engine Oil Support

1шт.

17

504385442

GASKET

Engine Thermostat

1шт.

18

504381582

GASKET

Oil Cooler

1шт.

19

500301568

PLUG

Engine Oil

1шт.

20

5801757235

DIPSTICK

Engine Oil

1шт.

21

5801474160

SENSOR

Injection, Fuel Pressure

1шт.

Valid for 580N EP and 590SN Models only

1шт.

22

504382373

SENSOR

Injection, Fuel Pressure

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

23

500382599

SENSOR,Temperature

Fuel

1шт.

24

5801464247

SENSOR

Temperature, Thermostat

1шт.

25

504084983

PRESSURE SWITCH

Engine Oil Filter

1шт.

26

504369148

SENSOR

Air Intake

1шт.

27

504381064

SENSOR

Exhaust Manifold Temperature

1шт.

28

5801382522

SENSOR

Exhaust Manifold Pressure

1шт.

29

5801600537

SENSOR

Engine Camshaft Position

1шт.

30

4897242

SENSOR

Engine Crankshaft Position

1шт.

31

226456A1

LEVEL GAUGE

Hydraulic Oil Reservoir

1шт.

32

282775A1

IGNITION SWITCH

1шт.

33

85824281

SEAL KIT,Control Valve Section, Complete

Backhoe Control Valve, Swing & Outlet Sections

1шт.

34

85825473

SEAL KIT

Backhoe Control Valve, Stabilizer, Boom & Dipper Sections

1шт.

35

401061A1

SEAL KIT

Steering Cylinder, 2WD

1шт.

Valid for 580N and 580SN Models only

1шт.

36

84556599

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580N EP and 580N Models only

1шт.

37

84330972

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580SN Model only

1шт.

38

84331720

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580SN WT and 590SN Models only

1шт.

39

388713A1

SEAL KIT

Damping Valve

1шт.

40

85819148

SEAL KIT,Between Control Valve Sections

Backhoe Control Valve, Swing Sections

1шт.

41

76090109

KIT

Backhoe Control Valve, Inlet Sections

1шт.

42

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

1шт.

43

85821235

SEAL KIT

Backhoe Control Valve, Inlet Sections

1шт.

44

85821236

SEAL KIT

Backhoe Control Valve, Inlet Sections

1шт.

45

87617657

O-RING KIT

Control Valve Section

1шт.

46

87438028

SEAL KIT

2-Way Solenoid

1шт.

47

87438024

SEAL KIT

4-Way Solenoid

1шт.

48

85828002

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

49

85827998

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

50

85827999

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

51

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

52

84473366

SENSOR

Transmission Gear Speed

1шт.

53

87601345

DIPSTICK,824mm L

Transmission Oil

1шт.

54

86989676

SENDER UNIT

Fuel Level

1шт.

Valid for 580N EP Model only

1шт.

55

84287552

SENDER UNIT

Fuel Level

1шт.

Valid for 580N, 580SN, 580SN WT and 590SN Models only

1шт.

56

10395890

FUSE,5A, Mini, Beige

1шт.

57

87522595

FUSE,7.5A, Mini, Brown

1шт.

58

87522597

FUSE,10A, Mini, Red

1шт.

59

87524877

FUSE,15A, Mini, Blue

1шт.

60

10401190

FUSE,20A, Mini, Yellow

1шт.

61

10402190

FUSE,30A, Mini

1шт.

62

84296788

SEAL KIT

Mechanical Loader Control Valve

1шт.

63

1346108C2

SEAL KIT

Loader Control Valve

1шт.

64

1346105C2

SEAL KIT

Loader Control Valve, 2 Spool

1шт.

65

84257765

SEAL KIT,44.4mm Rod x 82.6mm Bore

Lift Cylinder

1шт.

Valid for 580N Model only

1шт.

66

84257788

SEAL KIT,38.1mm Rod x 76.2mm Bore

Bucket Cylinder

1шт.

Valid for 580N Model only

1шт.

67

84257772

SEAL KIT,38.1mm Rod x 76.2mm Bore

Bucket Cylinder

1шт.

Valid for 580SN and 580SN WT Models only

1шт.

68

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

Bucket Cylinder

1шт.

Valid for 590SN Model only

1шт.

69

86982377

SEAL KIT

Clam Cylinder

1шт.

70

84259218

SEAL KIT,57.2mm Rod x 114.3mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 580N EP and 580N Models only

1шт.

71

84259219

SEAL KIT,63.5mm Rod x 127.0mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 580SN and 580SN WT Models only

1шт.

72

84259220

SEAL KIT,69.9mm Rod x 139.7mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 590SN Model only

1шт.

73

84259221

SEAL KIT,57.2mm Rod x 108.0mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 580N EP and 580N Models only

1шт.

74

84259222

SEAL KIT,63.5mm Rod x 120.70mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 580SN and 580SN WT Models only

1шт.

75

84259223

SEAL KIT,69.9mm Rod x 133.4mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 590SN Model only

1шт.

76

47514468

SEAL KIT,50.8mm Rod, 101.6mm Bore

Stabilizer Cylinder

1шт.

Valid for 580N EP Model only

1шт.

77

84259226

SEAL KIT,57.2mm Rod x 108.0mm Bore

Stabilizer Cylinder

1шт.

Valid for 580N Model only

1шт.

78

84259227

SEAL KIT,57.2mm Rod x 114.3mm Bore

Stabilizer Cylinder

1шт.

Valid for 580SN Model only

1шт.

79

84259228

SEAL KIT,63.5mm Rod x 133.4mm Bore

Stabilizer Cylinder

1шт.

Valid for 580SN WT and 590SN Models only

1шт.

80

84259224

SEAL KIT,57.2mm Rod x 82.6mm Bore

Backhoe Bucket Cylinder

1шт.

Valid for 580N EP and 580N Models only

1шт.

81

84259225

SEAL KIT,63.5mm Rod x 88.9mm Bore

Backhoe Bucket Cylinder

1шт.

Valid for 580SN, 580SN WT and 590SN Models only

1шт.

82

84172816

SEAL KIT,50.8mm Rod, 95.3mm Bore

Swing Cylinder

1шт.

Valid for 580N EP and 580N Models only

1шт.

83

84227088

SEAL KIT

Comfort Steer Solenoid Valve

1шт.

84

84422097

SERVICE KIT

Pilot Controls, Check Valve

1шт.

85

5801577138

STARTER MOTOR,12V, 3.2kW

1шт.

5801577138R

REMAN-STARTER

Reman Starter

1шт.

5801577138C

CORE-STARTER

Return Number

1шт.

86

87705447

SENSOR

Powershift Transmission Thermostat

1шт.

87

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

88

84271717

RELAY,12V, 50A

Sealed

1шт.

89

87655334

RELAY,12V, 35A, Micro

N.O.

1шт.

90

87534058

SEAL KIT

Steering Pump, Two Speed

1шт.

Valid for 580N EP, 580N and 580SN Models only

1шт.

91

87661956

SEAL KIT

Steering Valve, Load Sense

1шт.

92

277217

SEAL KIT

Powershift Transmission, Contol Valve

1шт.

93

84539252

SENSOR

Air Cleaner, Air Temperature

1шт.

94

87701313

SENSOR

Transmission Oil Pressure Sensor

1шт.

95

87705716

SENSOR

Powershift Transmission Oil Pressure Sensor

1шт.

96

87705451

SENSOR

Powershift Transmission Gear Speed Sensor

1шт.

Valid for 580SN, 580SN WT and 590SN Models only

1шт.

97

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

98

87499750

SENSOR

Gear Speed

1шт.

99

87673380

WIPER BLADE

Front

1шт.

100

87669391

WIPER ARM,Single, 550mm L

Front

1шт.

101

84562946

WIPER ARM,Single, 550mm

Front

1шт.

102

87669401

WIPER BLADE,400mm L

Rear

1шт.

103

87669712

WIPER ARM,Single, 429mm L

Rear

1шт.
