(55.512.280) - VAR - 745161 - SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS

Запчасти Case 580SN (55.512.280) - VAR - 745161 - SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS

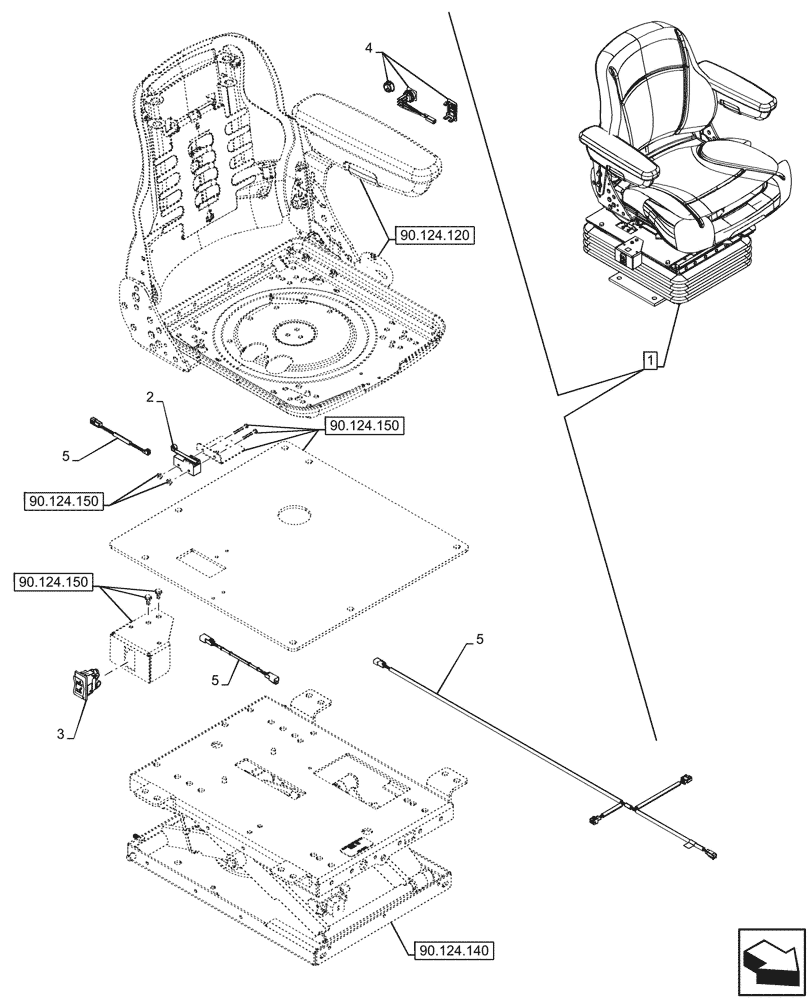

Схема запчастей Case 580SN - (55.512.280) - VAR - 745161 - SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS
90.124.120
4
3
1
5
2
5
5
90.124.150
90.124.150
90.124.150
90.124.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47939207

DRIVER SEAT

ASSY, Cloth, Gray Fabric, Incl 2 - 5

1шт.

See also Driver Seat Components in Figures 90.124.120, 90.124.130, 90.124.140, 90.124.150

1шт.

2

84276125

SWITCH

Push Button

1шт.

3

87475861

ROCKER SWITCH

1шт.

4

87407048

SWITCH

Heater

1шт.

5

84276128

SERVICE KIT

Wire Harness

1шт.
