(55.512.270) - VAR - 745160 - SEAT AIR SUSPENSION, VINYL, SWITCH, HARNESS

Запчасти Case 580SN (55.512.270) - VAR - 745160 - SEAT AIR SUSPENSION, VINYL, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS

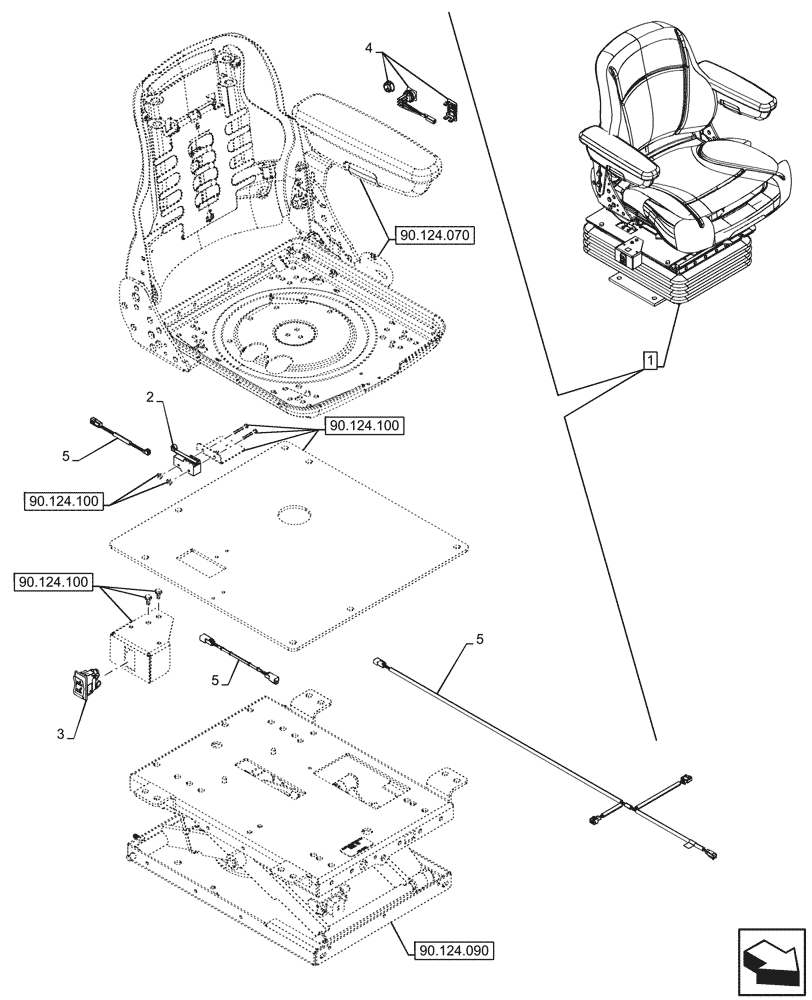

Схема запчастей Case 580SN - (55.512.270) - VAR - 745160 - SEAT AIR SUSPENSION, VINYL, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS
90.124.100
3
4
1
2
5
5
5
90.124.090
90.124.070
90.124.100
90.124.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47939231

DRIVER SEAT

ASSY, Vinyl, Gray Fabric, Incl 2 - 5

1шт.

See also Driver Seat Components in Figures 90.124.070, 90.124.080, 90.124.090, 90.124.100

1шт.

2

84276125

SWITCH

Push Button

1шт.

3

87475861

ROCKER SWITCH

1шт.

4

87407048

SWITCH

Heater

1шт.

5

84276128

SERVICE KIT

Wire Harness

1шт.
