(55.511.050) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, FRONT, HARNESS

Запчасти Case 580SN (55.511.050) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, FRONT, HARNESS (55) - ELECTRICAL SYSTEMS

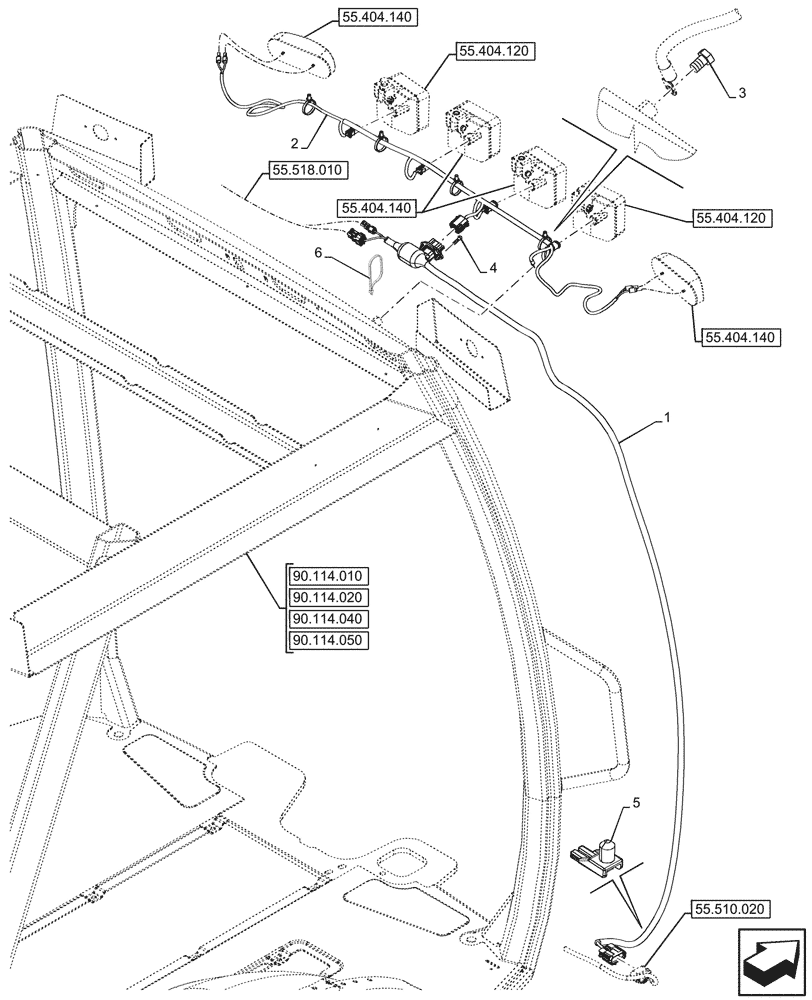

Схема запчастей Case 580SN - (55.511.050) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, FRONT, HARNESS (55) - ELECTRICAL SYSTEMS
90.114.040
4
3
5
1
6
2
55.404.120
55.404.120
90.114.020
55.510.020
90.114.050
55.518.010
90.114.010
55.404.140
55.404.140
55.404.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533371

WIRE HARNESS

A-Post, Canopy

1шт.

2

47533334

WIRE HARNESS

Front Work Lights

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

4

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

5

87707841

CLIP,Hole DIA 6.35mm

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
