(55.302.010) - VAR - 423093 - DUAL BATTERY

Запчасти Case 580SN (55.302.010) - VAR - 423093 - DUAL BATTERY (55) - ELECTRICAL SYSTEMS

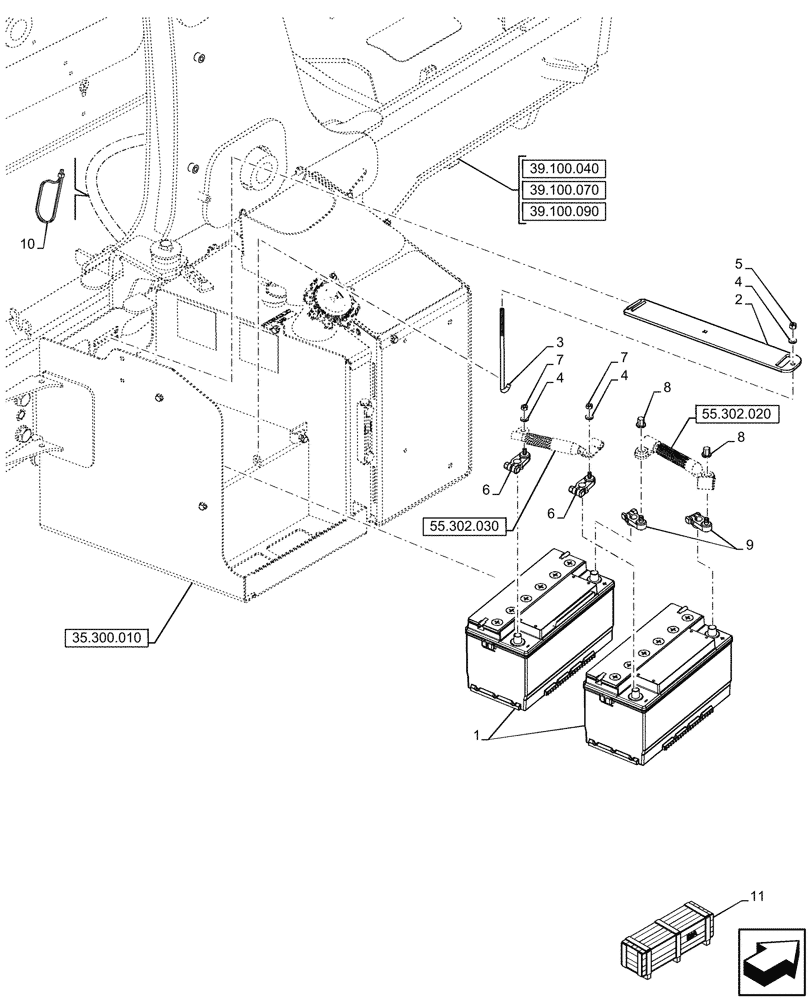

Схема запчастей Case 580SN - (55.302.010) - VAR - 423093 - DUAL BATTERY (55) - ELECTRICAL SYSTEMS
39.100.040
9
6
10
4
8
1
11
4
5
3
4
8
2
6
55.302.020
7
7
35.300.010
55.302.030
39.100.090
39.100.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B4960W

WET BATTERY

for U.S. Market only

2шт.

1

CC4960W

WET BATTERY

for Canadian Market only

2шт.

2

47945183

PLATE

1шт.

3

47547382

THREADED ROD,M8 x 1.2 x 220mm L

Battery Hold Down

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

5

412250

NUT,M8 x 1.25, Cl 8

1шт.

6

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negative

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

Battery Terminal

2шт.

9

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

11

47629934

CONSTRUCTION DIA

Dual Battery, Incl 1, 4, 6 - 9

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47834894

CONSTRUCTION DIA

Cold Start Aid, Incl 1, 4, 6 - 9

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
