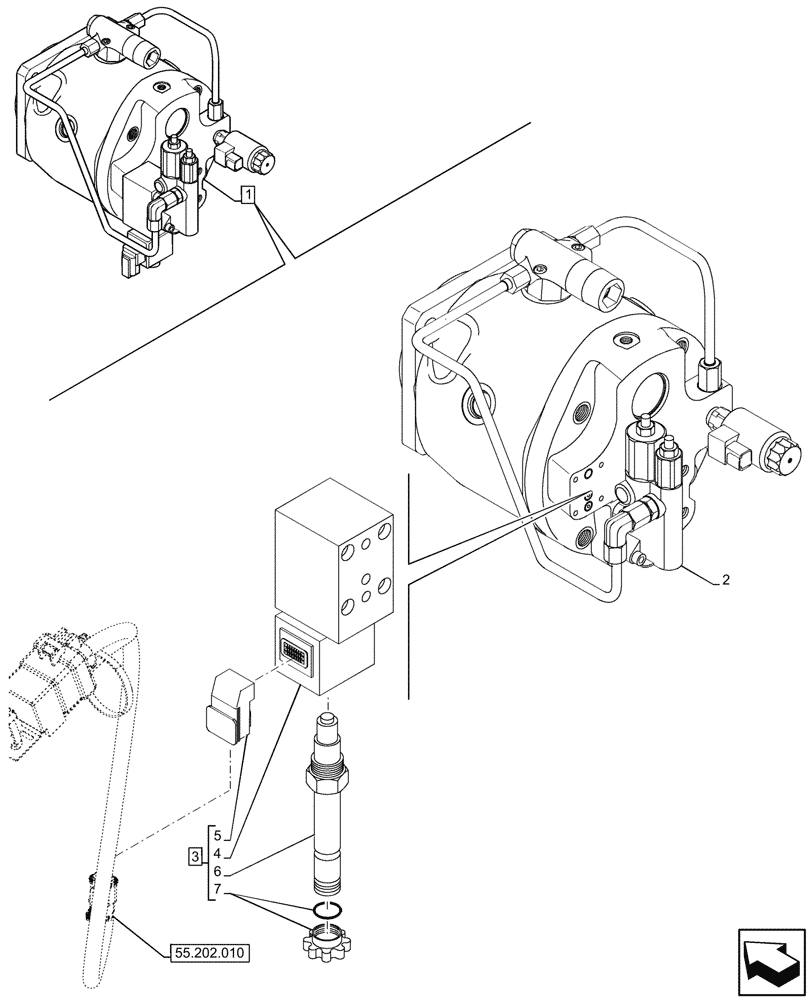

Запчасти Case 580SN (55.202.030) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COLD START, VALVE, (W/O POWER LIFT, W/ DUAL BATTERIES) (55) - ELECTRICAL SYSTEMS

1

84545278

HYDRAULIC PUMP,71 CC

ASSY, Incl 2 - 7

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

See also Hydraulic Pump Components in Figures 35.106.320, 55.036.150

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

47797269

VALVE

ASSY, Cold Start, Incl 4 - 7

1шт.

To be ordered when code R978059014 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

4

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 3

1шт.

5

47797268

COIL

1шт.

6

47797267

CARTRIDGE

Cold Start Valve

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.
