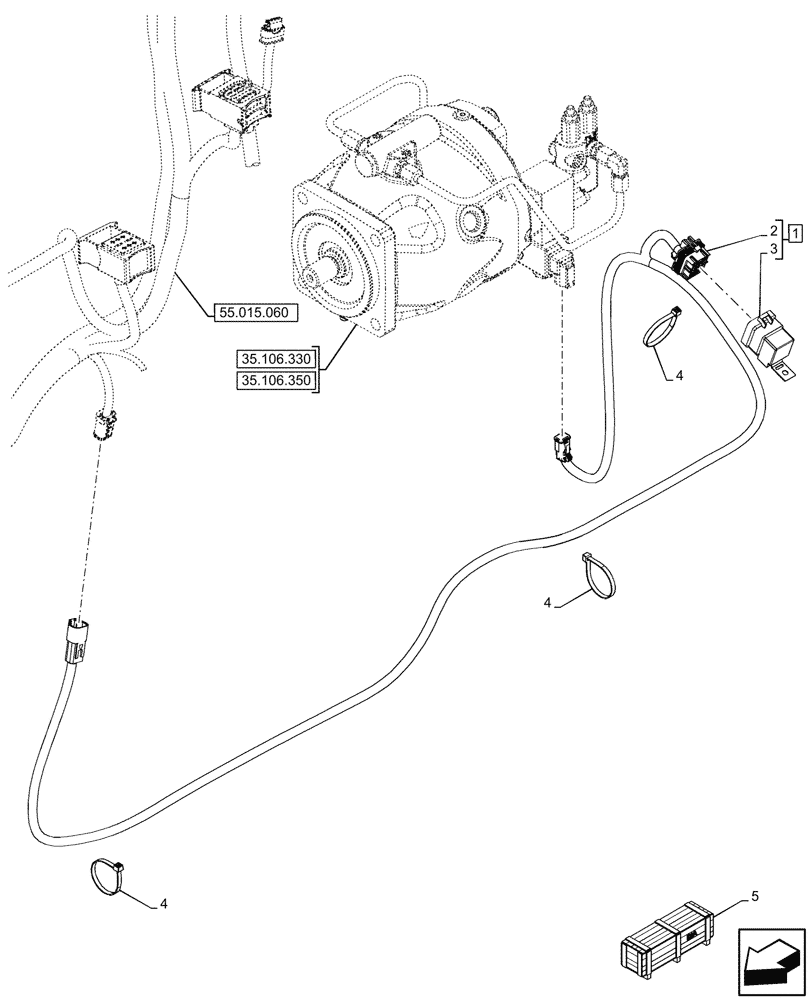

Запчасти Case 580SN (55.202.010) - VAR - 423093 - COLD START SYSTEM, HARNESS (55) - ELECTRICAL SYSTEMS

1

84526859

JUMPER

ASSY, Cold Start Solenoid to Engine Harness, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

293256A2

RELAY,12V

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

5

47834894

CONSTRUCTION DIA

Cold Start Aid, Incl 1 - 4

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
