(55.036.150) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, DIODE SUPPRESSOR, HARNESS, (W/O POWER LIFT, W/ DUAL BATTERIES)

Запчасти Case 580SN (55.036.150) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, DIODE SUPPRESSOR, HARNESS, (W/O POWER LIFT, W/ DUAL BATTERIES) (55) - ELECTRICAL SYSTEMS

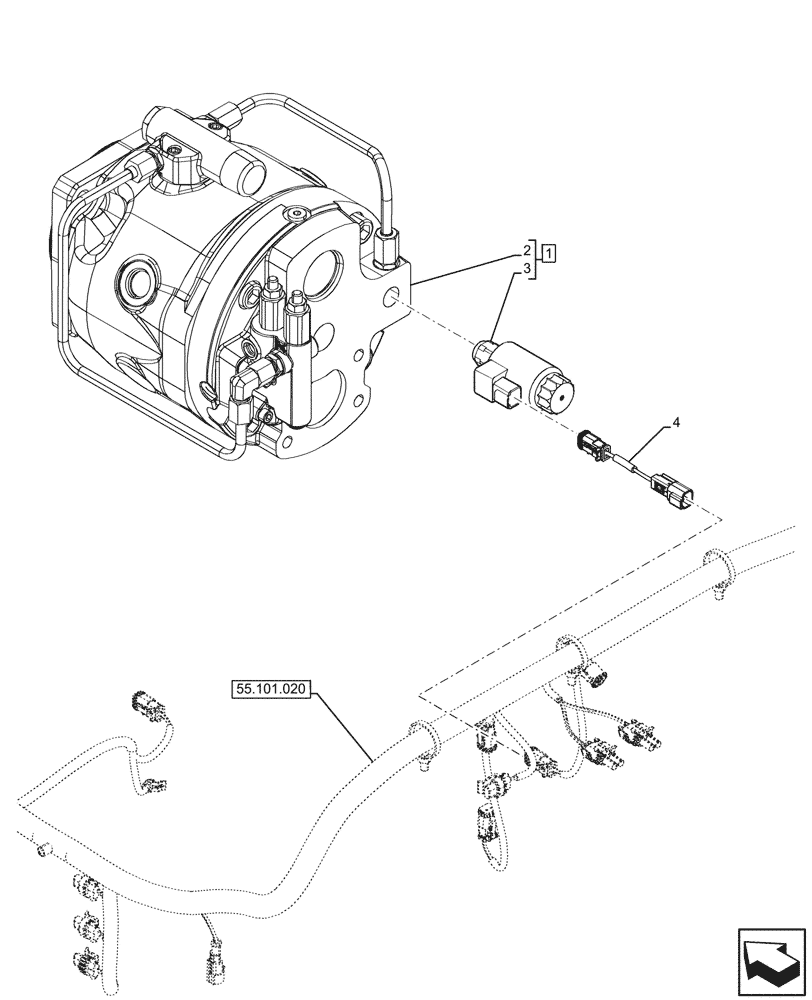

Схема запчастей Case 580SN - (55.036.150) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, DIODE SUPPRESSOR, HARNESS, (W/O POWER LIFT, W/ DUAL BATTERIES) (55) - ELECTRICAL SYSTEMS
55.101.020
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84545278

HYDRAULIC PUMP,71 CC

ASSY, Incl 2, 3

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

See also Hydraulic Pump Components in Figures 35.106.320, 55.202.030

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

84312179

CONTROL VALVE

1шт.

4

84292404

HARNESS

Suppressor Diode

1шт.

Выбрано товаров: 6
